Appendix A: Image Pasting
Definium 5000 X-Ray System 5197809-1EN Rev. 4 (13 February 2008) A-3
Operator Manual © 2008 General Electric Company. All rights reserved.
Image Pasting Patient Positioner
The patient positioner (Figure A-3) is used to accurately re-construct images.
NOTE: The maximum weight the patient positioner can support is 204kg (450 lbs.).

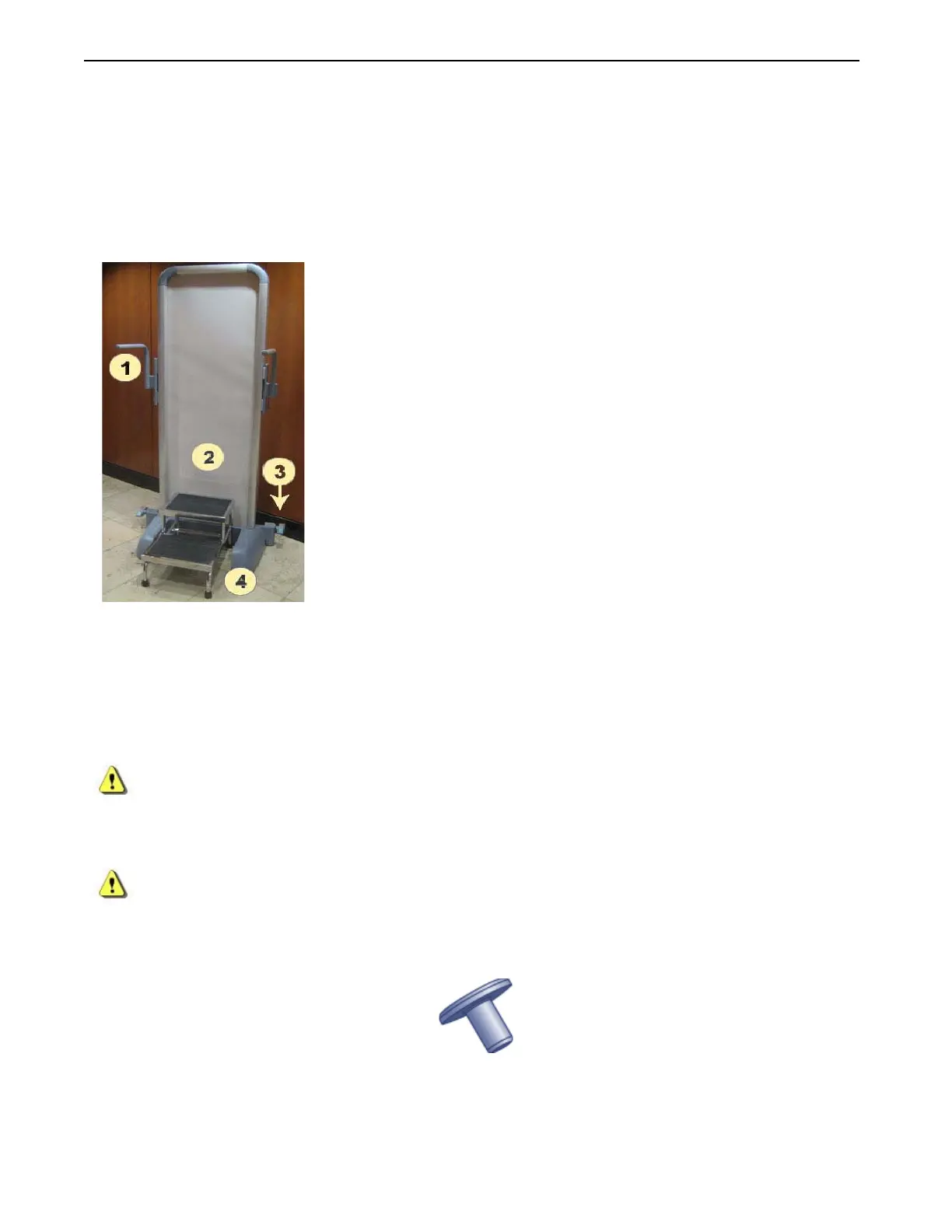

Figure A-3 Patient positioner
Lock Positioner in Place
The positioner locks into place in front of the wall stand receptor. Locking the positioner ensures that it is
at the appropriate distance from the receptor, that it will not move during acquisition, and that the
patient does not fall.
CAUTION: Lock both sides of the positioner before allowing the patient to stand on the riser. The
positioner could move and cause the patient to fall.
CAUTION: The receiving holes in the floor may collect debris or catch the heel of a shoe. Use the
provided plugs (Figure A-4) to fill the receiving holes when the positioner is not in use.
Figure A-4 Floor plug
1. Lateral positioning bars
2. Mylar backing
3. Floor locks (one on each side)
4. Riser
FOR TRAINING PURPOSES ONLY!
NOTE: Once downloaded, this document is UNCONTROLLED, and therefore may not be the latest revision. Always confirm revision status against a validated source (ie CDL).
