Appendix A: Image Pasting
Definium 5000 X-Ray System 5197809-1EN Rev. 4 (13 February 2008) A-16
Operator Manual © 2008 General Electric Company. All rights reserved.

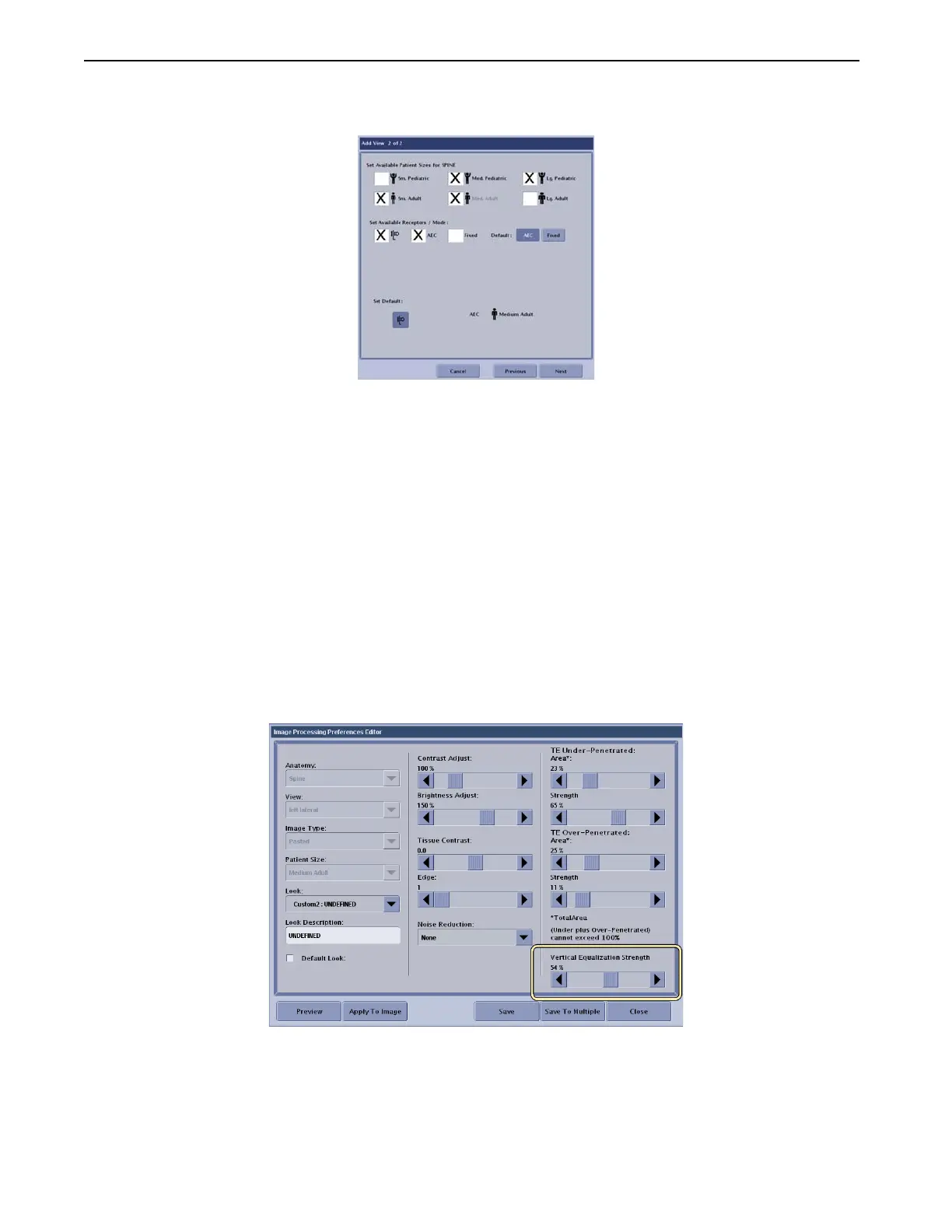

Figure A-27 Add View screen (2 of 2)
Edit Image Processing
The Image Processing editor allows you to select an Image Type of “Pasted” for specific anatomy and
views.
• The Image Type “Pasted” is only available if one of the following Anatomy is selected:
–Spine
–Legs
•The only Views that allow image pasting processing are:
– Spine: AP, PA, Left LAT, and Right LAT
–Legs: AP and PA
The Vertical equalization strength slider appears (Figure A-28) if “Pasted” is selected for the Image Type.
Figure A-28 Image Processing Preferences Editor screen
