6. Press [PROGRAMS] to return to the previous screen.
The screen will show modified position data and the words "Current Position" will be flashing.
7. Press [SAVE].
The "Current Position" words will then change to "Saved Program".
8. Press [EXIT] to return to the Programs screen.
Emergency Stop
The unit includes Emergency Stop buttons (Figure 3-15) located on the CRIB, receptor, and system
cabinet that immediately stop image exposure and system movement in the event of an emergency.
Press any red Emergency Stop button to stop movement or exposure.
To release the emergency stop, rotate the knob clockwise (in the direction of the arrow).
WARNING: In the event of an emergency, forcibly press the “Emergency Stop” button on the system
cabinet, the receptor, or the CRIB (Figure 3-15).
NOTE: After engaging the emergency stop, wait 30 seconds before releasing it. Otherwise, a system error
will occur and you will have to reset the system.

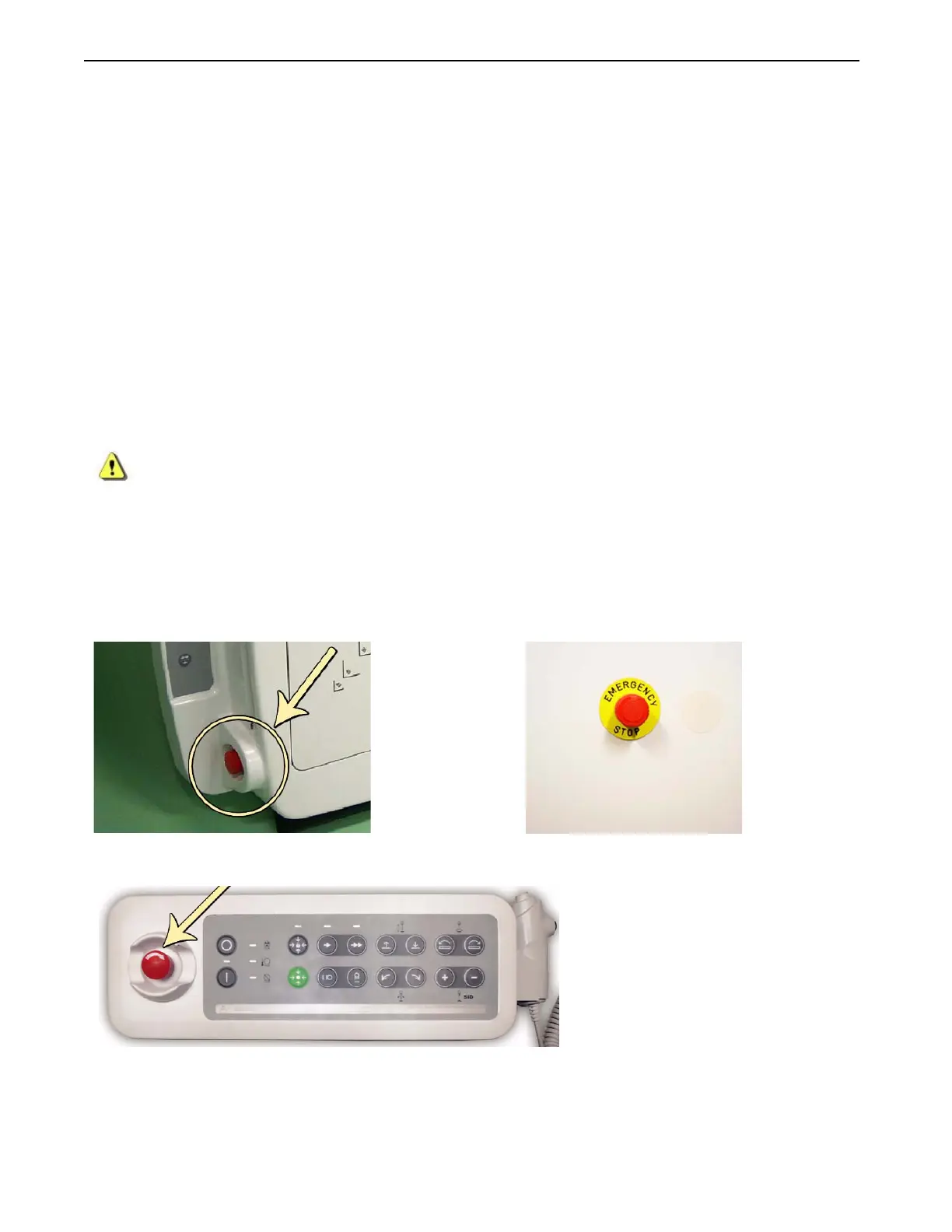

Figure 3-15 Emergency stop buttons
Receptor System cabinet
CRIB
