Chapter 3: System Overview
Definium 5000 X-Ray System 5197809-1EN Rev. 4 (13 February 2008) 3-13
Operator Manual © 2008 General Electric Company. All rights reserved.

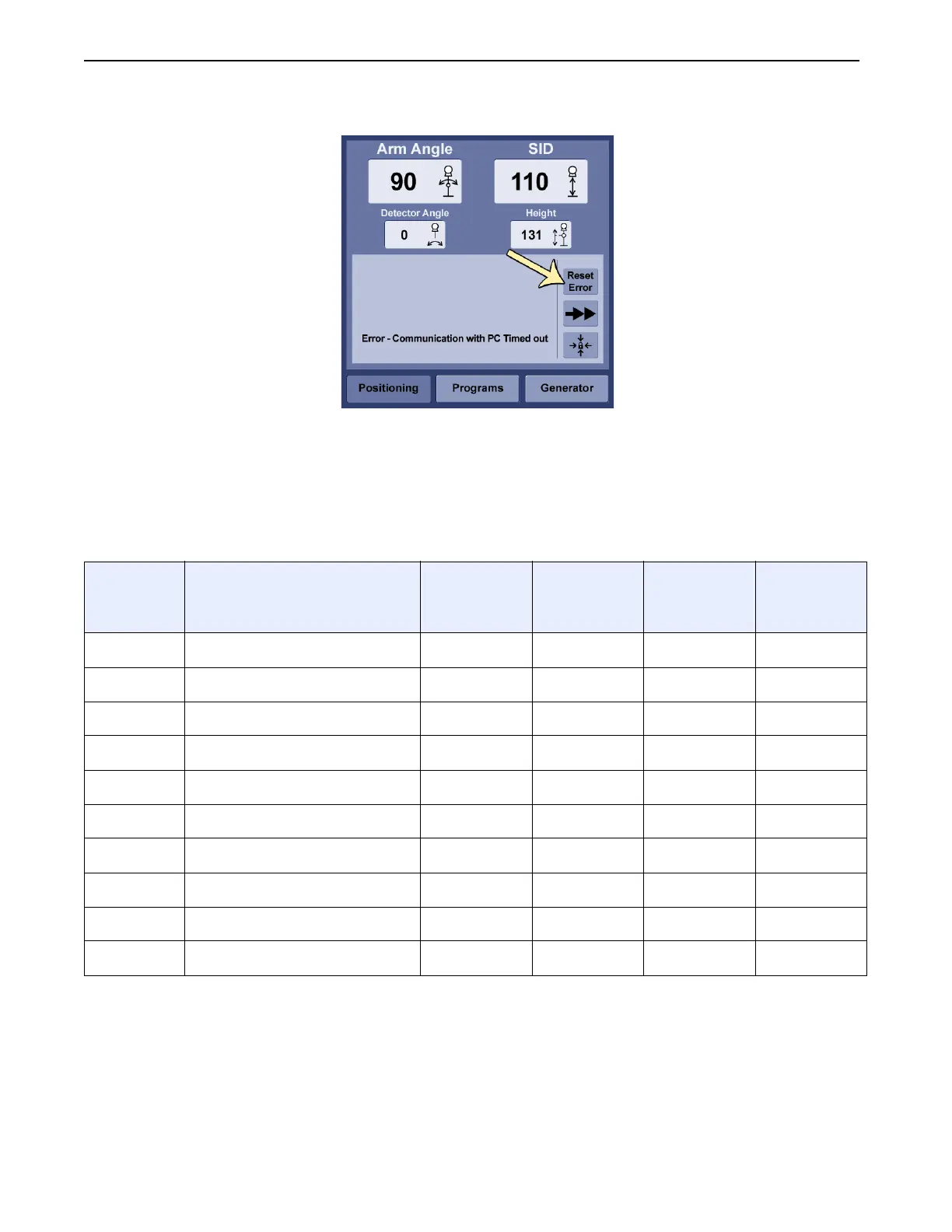

Figure 3-11 Positioning screen with error
Modify Positions
Ten default autoposition programs are provided on your system. See Table 3-5 for details of these
programs.
Table 3-5 Default auto position programs
Ninety-nine positions are available. Contact your Field Service Engineer to add new positions.
Program
Number
Name SID (cm)
U-Arm
Rotation
(Degrees)
Detector
Angle
(Degrees)
Height (cm)
1KUB 1000060
2 L5SI SPOT 100 -5 5 60
3 CHEST 180 90 0 120
4 UPRIGHT ABDOMEN 100 90 0 120
5 APC SPINE 100 97 -5 123
6 STANDING KNEE 100 90 0 70
7HAND/WRIST 1000070
8 SUNRISE KNEE 100 26 -25 50
9 CROSS TABLE SPINE 100 90 0 75
10 SMV 100 119 0 122
