Anti-collision System
In addition to the light beams that slow down the speed or stop motion when the light beam is cut, this
unit includes an anti-collision system that will stop or reverse movement if the arm assembly collides
with any object.
• When the Arm is moving down or when it rotates, the anti-crushing system will always reverse the
movement to avoid any objects between the detector and the floor (Figure 3-16).

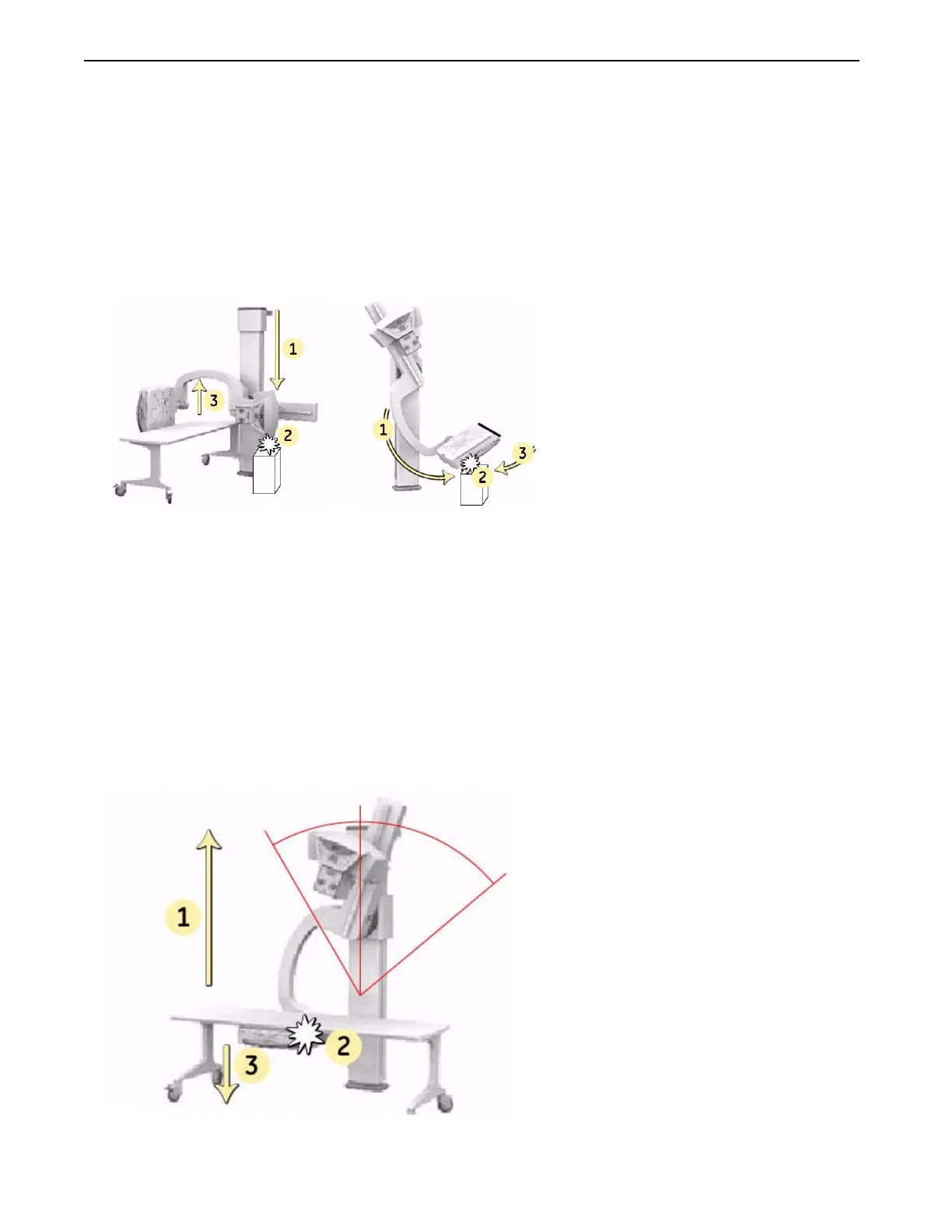

Figure 3-16 Anti-collision during vertical movement and rotation
• When the Arm is moving up, the anti-crushing will either reverse the movement or stop movement,
depending on the following situations:
– If the angle is between -30° and 50° (the angle range where the detector could be under the table),
the system will reverse direction down (Figure 3-17).
– If the angle is between 51° to 120° and in horizontal position, the system stops movement
(Figure 3-18).
Figure 3-17 Anti-collision to prevent collision with table
1. Arm moves vertically or rotates.
2. Arm contacts an object.
3. Arm reverses movement.
1. Arm moves vertically when the image
receptor assembly is below the
radiographic table. (That is, at an angle
between -30° and 50°.)
2. Arm contacts the table or an object.
3. Arm reverses movement.
