Appendix A: Image Pasting
Definium 5000 X-Ray System 5197809-1EN Rev. 4 (13 February 2008) A-12
Operator Manual © 2008 General Electric Company. All rights reserved.
NOTE: The pasted composite will not be saved until [APPLY TO IMAGE] is pressed.
[APPLY TO IMAGE] initiates the system to perform the following tasks:
– Apply the new registration and all processing
– Re-process sub-images (creates new sub-images)
– Create new pasted composite image
– Add re-pasted images to the existing processed series
You will automatically be returned to the main Image Viewer screen.
7. Press [CLOSE] to leave the pasting screen and return to the Image Viewer screen if you do not want to
save the pasted composite
Add New Images to Pasted Composite
You may take additional exposures and create a new composite that contains the extra exposures. For
example, if the original exposures of a leg exam did not extend to the ankle, additional exposures to
cover the missed anatomy can be taken then added to a new composite image.
1. Take the additional exposures as described in Image Pasting Acquisition
(p. A-5).
2. Create a new pasted composite as described in Paste Images (Create Composite Image)
(p. A-8).
3. Adjust pasting, if necessary, as described in Correct Pasting
(p. A-10).
4. Press [APPLY TO IMAGE] to save the composite.
NOTE: If performing more than one projection or series, you must perform these projections in separate
exams. To do this, complete your first projection, close the exam, reselect the patient from the
worklist, select Start Exam and select Append Exam on the pop-up screen to perform the second
paste exam.
Select Images
The Exam/Series palette shows two kinds of series:
• Raw images – the individual sub-images that were acquired.
• Processed images – one processed image for each raw image plus the pasted composite image
Pasting adds 1 re-processed sub-image for every raw image and 1 pasted composite image to the same
processed series.

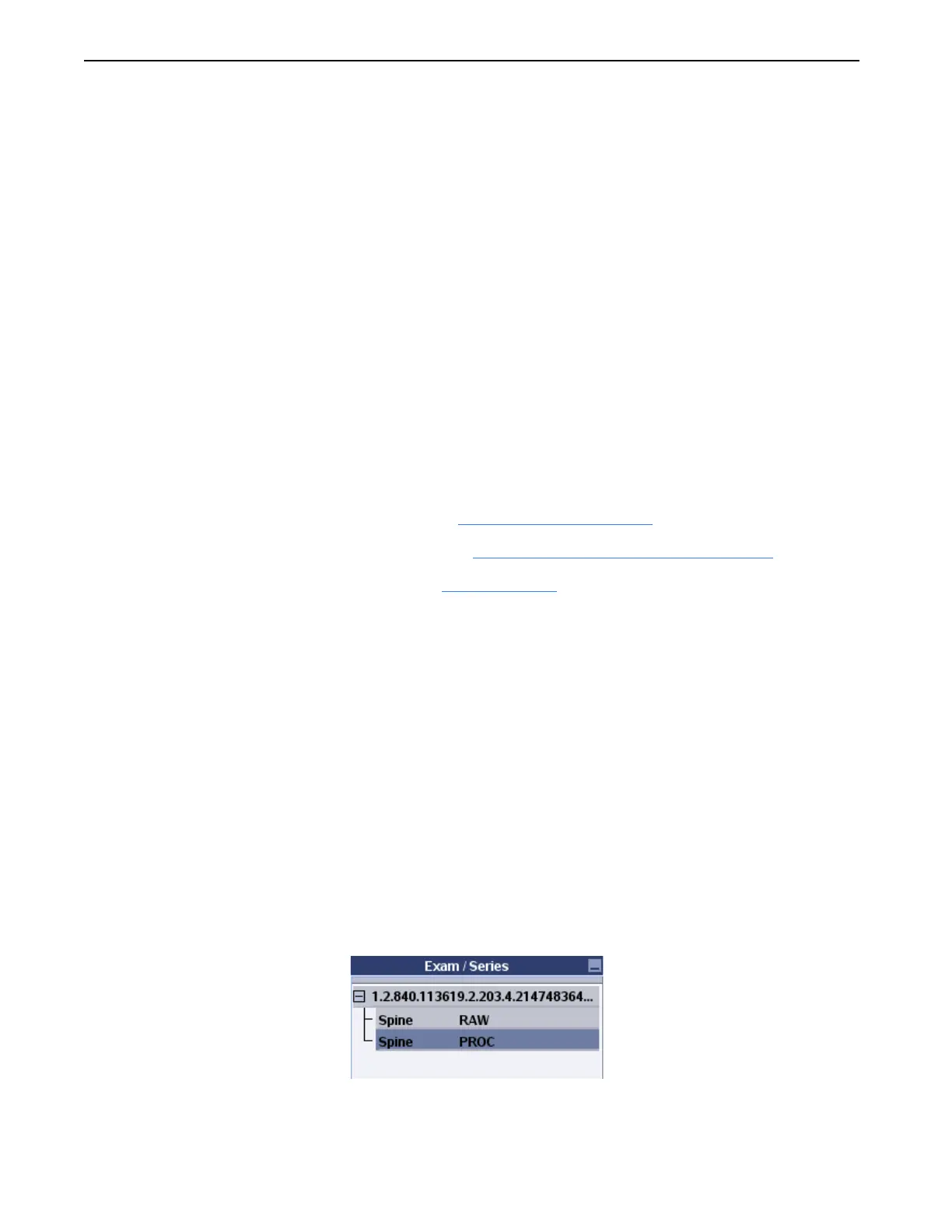

Figure A-22 Exam/Series palette
FOR TRAINING PURPOSES ONLY!
NOTE: Once downloaded, this document is UNCONTROLLED, and therefore may not be the latest revision. Always confirm revision status against a validated source (ie CDL).
