1. If multiple procedures were selected from the Worklist, select the procedure from the drop-down list.

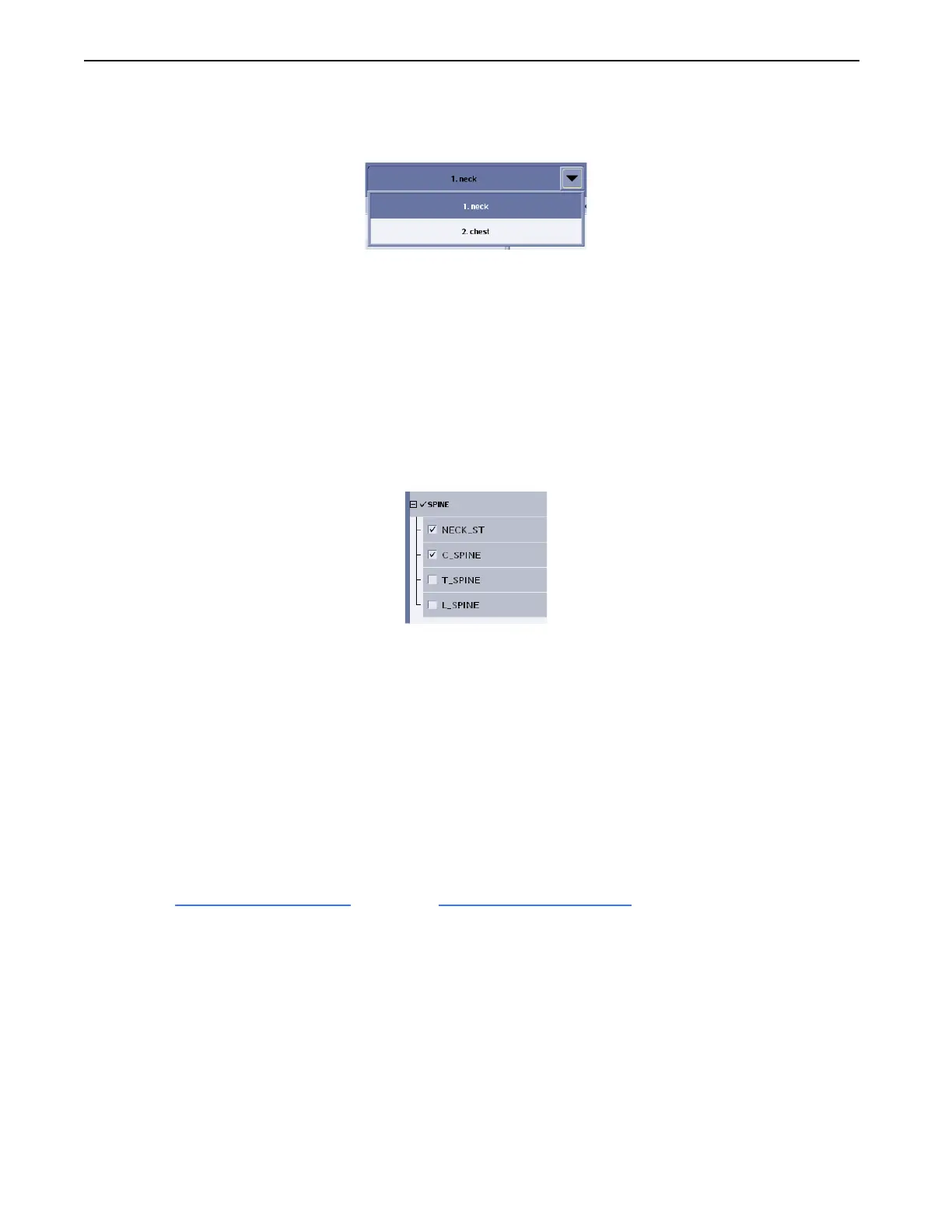

Figure 6-5 Select procedure
2. Press on an anatomical category (Available Protocols side) to open it.
The category expands to show the available exams.
Press on the anatomical category name again to close it.
3. Press on an exam to select it.
A checkmark appears in the box to the left of the exam name.
A checkmark appears next to the category name. This indicates that the category has at least one
exam selected.
Figure 6-6 Selected exams
The category and exam name appear in the Selected Protocols list.
4. Press the exam again to de-select it.
The category and exam name are removed from the Selected Protocols list.
5. Repeat process until all exams are selected for all procedures.
6. Press [ACCEPT] when finished.
The Select Protocols screen closes.
The Acquisition screen appears.
[CLOSE] removes the selections and returns you to the Worklist.
7. Refer to Conduct a Digital Exam
(p. 6-12) or Conduct a Cassette Exam (p. 6-14) to continue the exam.
Automatic Protocol Recognition (APR)
Automatic Protocol Recognition (APR) is a feature that will eliminate the protocol selection process and
take you directly to the Acquisition screen for the appropriate exam view after selecting the patient from
the Worklist. This feature is designed to help provide better ease of use.
For APR to function, the system protocol database must have matching values for the Requested
Procedure Code from the selected Exam in the HIS/RIS Worklist. The Acquisition screen will open with the
first view of the first exam selected.
