Chapter 6: Image Acquisition
Definium 5000 X-Ray System 5197809-1EN Rev. 4 (13 February 2008) 6-14
Operator Manual © 2008 General Electric Company. All rights reserved.
12. Make exposure using the hand switch.
The image appears on Image Viewer screen.
NOTE: It takes about 9 seconds for a fully processed image to appear on the Image Viewer screen.
13. Press the Acquisition tab to switch back to the Acquisition screen.
Conduct a Cassette Exam
The Cassette Exam function takes an x-ray without digital image acquisition and storage or electronic
information sending and retrieval. This is for use with a traditional Film Screen or CR cassette.
When the cassette receptor is selected, a message appears near the bottom of the screen: “CAUTION:
Non-digital Exposure. Ensure that film is in place.“

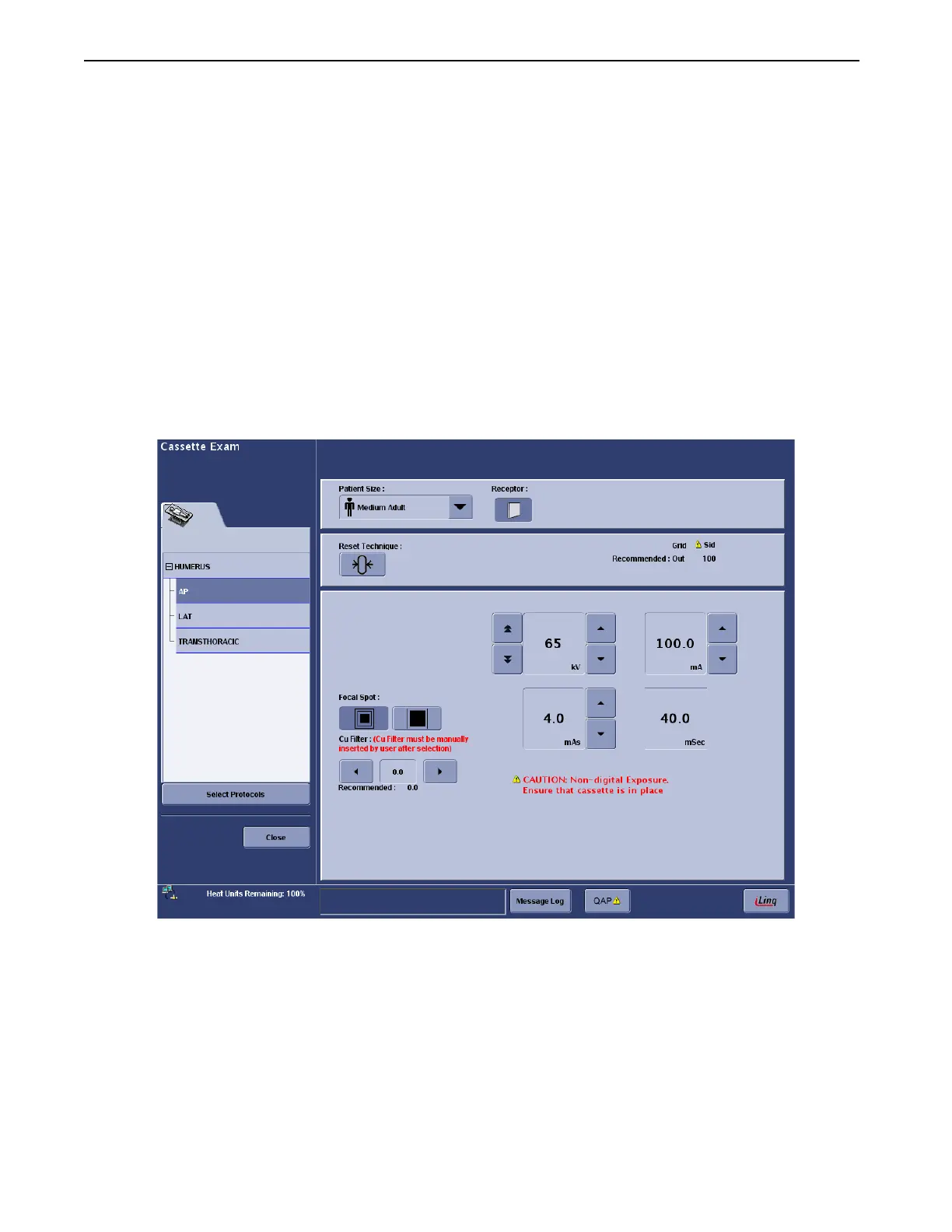

Figure 6-9 Cassette exam Acquisition screen
Follow this process to conduct a Cassette Exam.
1. Press [CASSETTE EXAM] from the bottom of the Worklist screen.
NOTE: Because a cassette exam does not use digital image storage, you do not select procedures from
the Worklist.
