Chapter 10: Set Preferences
Definium 5000 X-Ray System 5197809-1EN Rev. 4 (13 February 2008) 10-26
Operator Manual © 2008 General Electric Company. All rights reserved.
Image Viewer

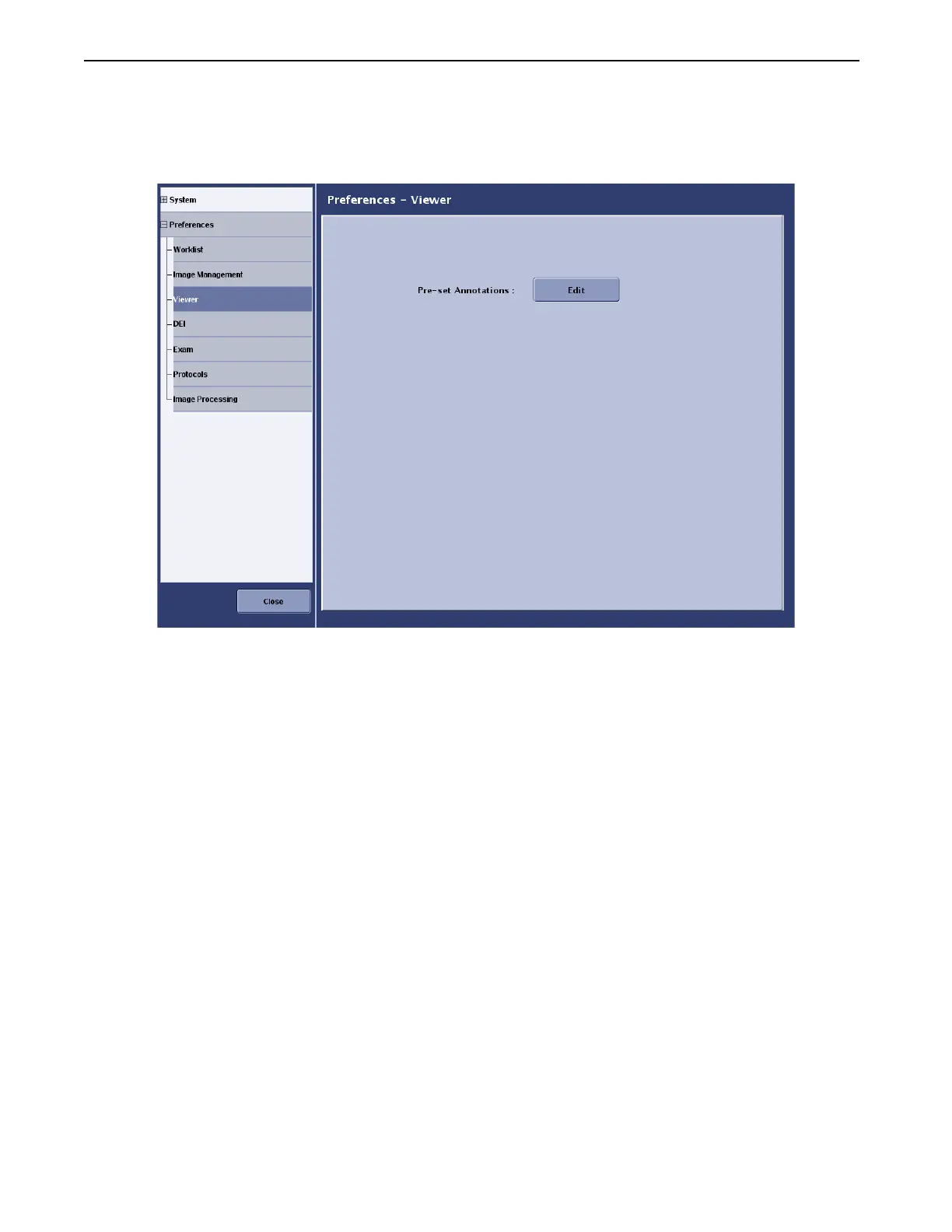

Figure 10-17 Preferences - Viewer screen
Configure Pre-set Annotations
Viewer Preferences allow you to add, edit, or remove pre-set annotations.
Follow this process to configure pre-set annotations.
1. From the Worklist screen, press [UTILITIES].
2. Select Preferences > Viewer.
3. Press Pre-set Annotation [EDIT].
The Pre-set Annotations editing screen (Figure 10-18) appears.
FOR TRAINING PURPOSES ONLY!
NOTE: Once downloaded, this document is UNCONTROLLED, and therefore may not be the latest revision. Always confirm revision status against a validated source (ie CDL).
