Chapter 8: Image Viewer
Definium 5000 X-Ray System 5197809-1EN Rev. 4 (13 February 2008) 8-7
Operator Manual © 2008 General Electric Company. All rights reserved.
Adjust Images
The Image Display Tools panel (Figure 8-5) contains the tools to flip, rotate, adjust brightness, adjust
contrast, invert, and apply windowing to the selected image. Table 8-3 describes each tool and how it
functions.

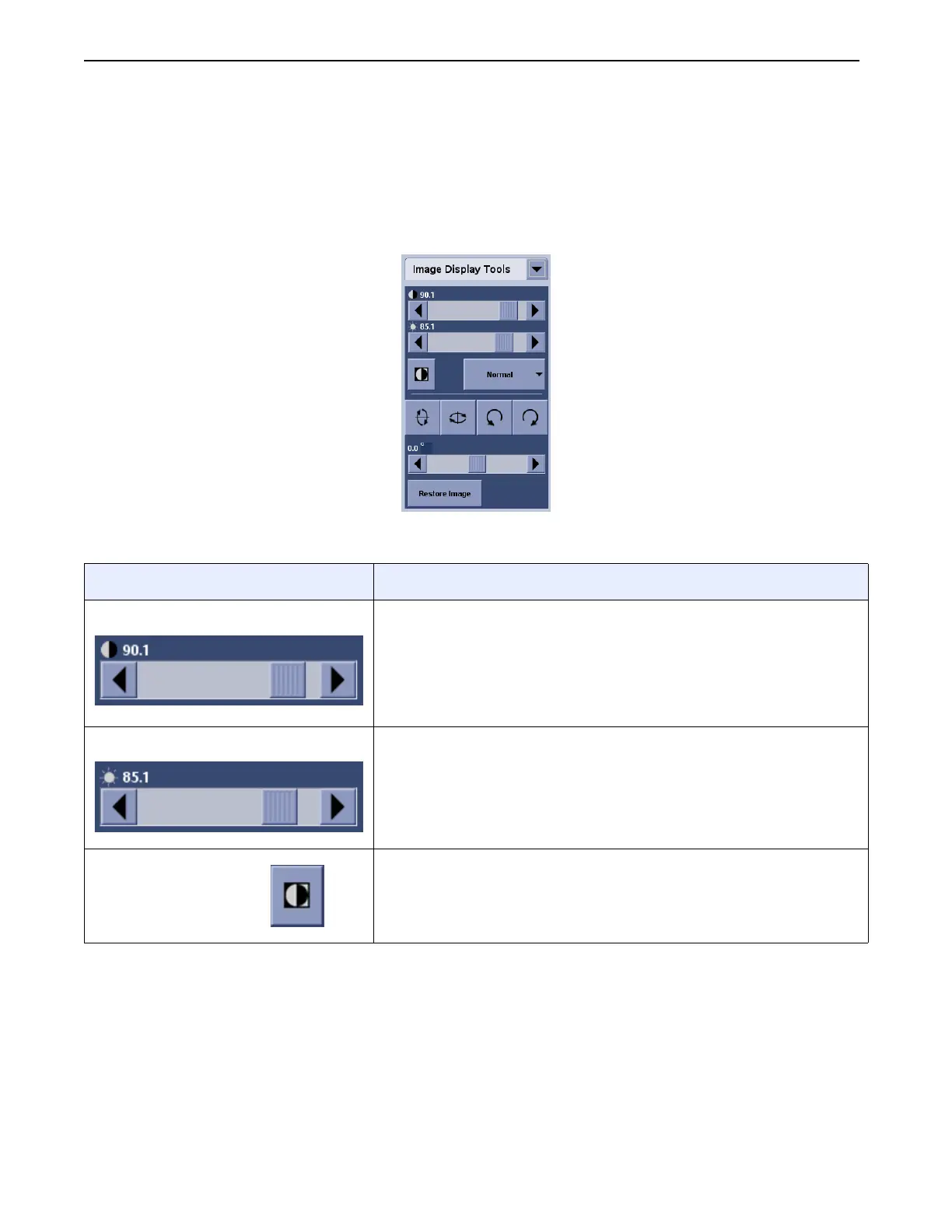

Figure 8-5 Image Display Tools panel
Table 8-3 Image Display Tools descriptions
Tool Description
Contrast Adjusts the differences between dark and light on the selected
image.
• Move the slider right for more contrast (towards pure black
and white).
• Move the slider left for less contrast (towards uniform gray).
Brightness Lightens or darkens the selected image.
• Move the slider right for a lighter image.
• Move the slider left for a darker image.
Invert Reverses light and dark areas of the selected image.
FOR TRAINING PURPOSES ONLY!
NOTE: Once downloaded, this document is UNCONTROLLED, and therefore may not be the latest revision. Always confirm revision status against a validated source (ie CDL).
