Chapter 8: Image Viewer
Definium 5000 X-Ray System 5197809-1EN Rev. 4 (13 February 2008) 8-8
Operator Manual © 2008 General Electric Company. All rights reserved.

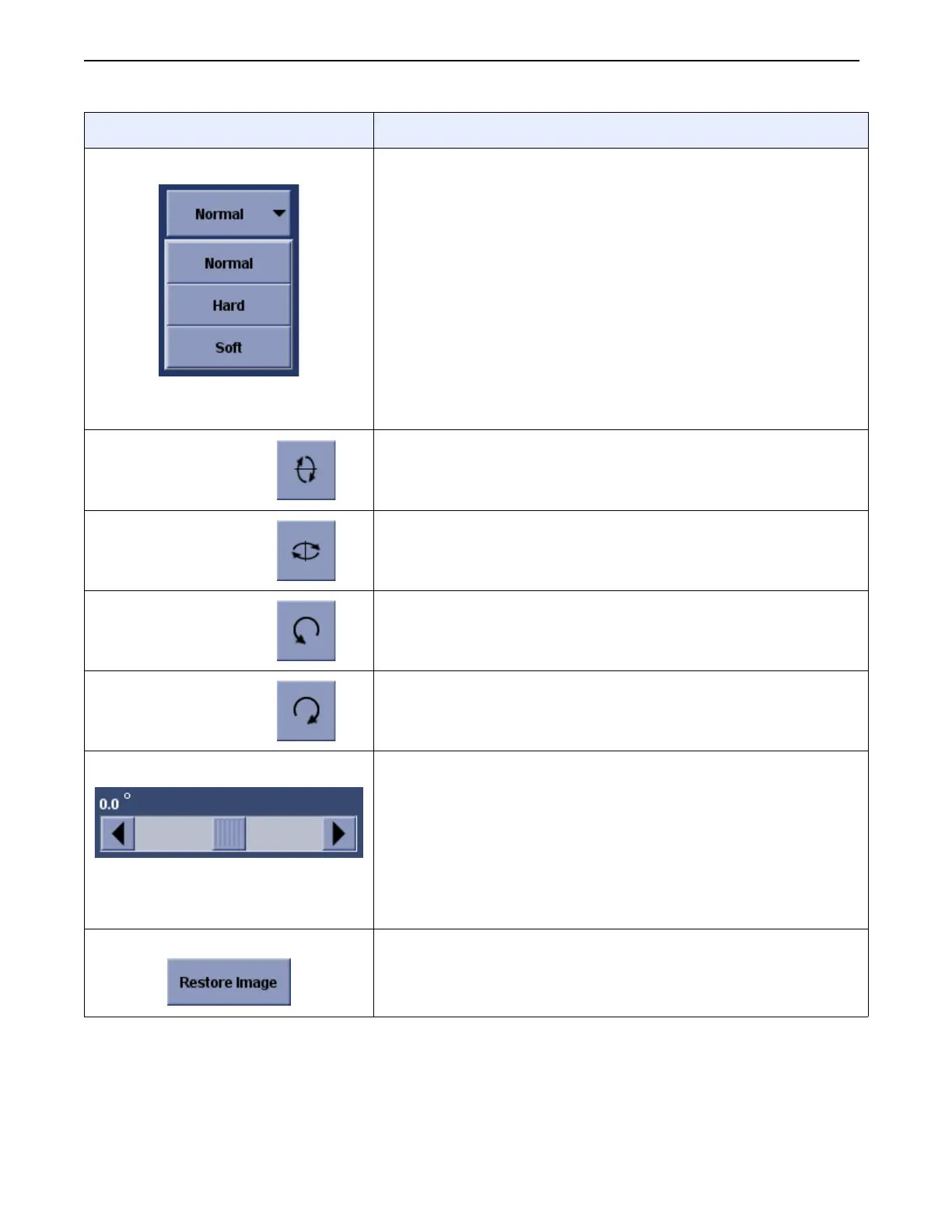

Windowing Applies windowing to the selected image.
Available options are:
• Normal - image as acquired
• Hard - adjusts the image towards black and white
• Soft - adjusts the image towards gray
The GE Digital Detector uses a “Smart Windowing” algorithm
to optimize image quality. Smart Windowing is an automated,
image-based, and technique-independent method of selecting
brightness and contrast for image display. Earlier methods
mostly relied on technique information (kVp, dose level, etc.) to
set brightness/contrast, making them more prone to operator
and system errors.
Vertical Flip Flips the selected image 180 degrees on the horizontal axis;
that is, switches top for bottom.
Horizontal Flip Flips the selected image 180 degrees on the vertical axis; that
is, switches left for right.
Rotate Left Rotates the selected image counter-clockwise in 90 degree
increments.
Rotate Right Rotates the selected image clockwise in 90 degree increments.
Free Rotation Rotates the selected image both clockwise and counter-
clockwise. The range is -180° to 180°.
• Press the end buttons to rotate the image in 0.1 degree
increments.
• Press and drag the slider to spin the image.
• Move the slider right to rotate the image clockwise.
• Move the slider left to rotate the image counter-clockwise.
Restore Image Removes all adjustments and returns the selected image to its
original state.
