Customize System Annotations
Follow this process to customize the system annotations that appear on the image.
1. Select the Annotations/Mask panel, if necessary.
2. Press [CUSTOM].
The Annotation screen (Figure 8-7) appears.

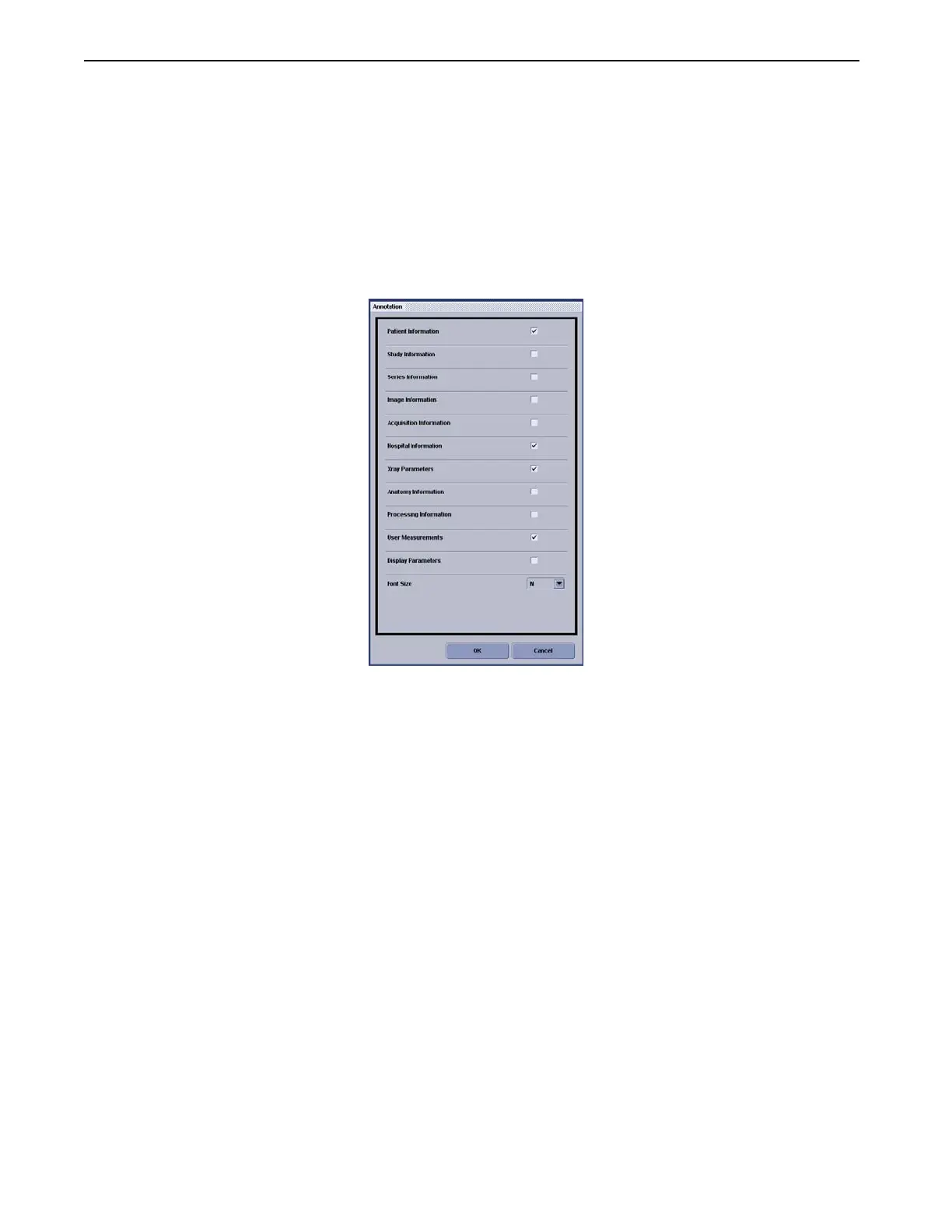

Figure 8-7 Custom Annotation selections
3. Select (check) the annotations you want to appear.
4. Adjust the Font Size, if necessary.
The available font sizes are:
–-2 (smallest)
–-1
–N (normal)
–+1
–+2
–+3 (largest)
5. Press [OK].
[CANCEL] closes the screen and leaves the selections unchanged.
