Chapter 3: System Overview
Definium 5000 X-Ray System 5197809-1EN Rev. 4 (13 February 2008) 3-11
Operator Manual © 2008 General Electric Company. All rights reserved.
Position System from Touch Screen Console
Follow this process to use the touch screen console to position the system.
1. Press [POSITIONING] on the screen, if necessary.

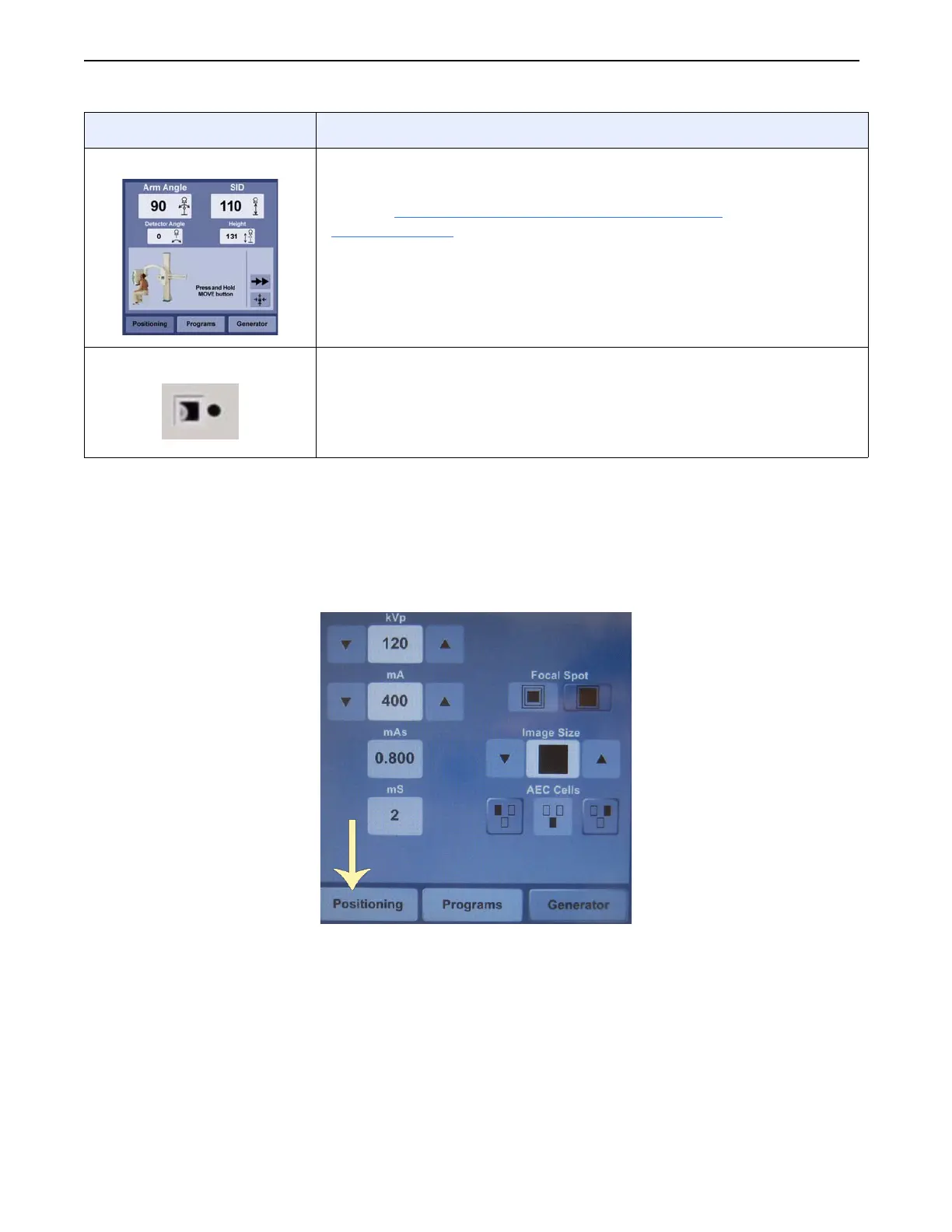

Figure 3-8 Touch Screen Console (showing Generator properties)
The Positioning screen appears (Figure 3-9)
Touch screen console Displays current system position, allows selection of pre-programed
positions, and allows modification of the exam parameters.
Refer to Position System from Touch Screen Console
(p. 3-11) and
Modify Positions
(p. 3-13) for more information.
Remote control sensor Receives the signal from the remote control (optional).
Do not block or cover the sensor. The signals from the remote control
may not be received.
