Chapter 3: System Overview
Definium 5000 X-Ray System 5197809-1EN Rev. 4 (13 February 2008) 3-18
Operator Manual © 2008 General Electric Company. All rights reserved.
Automatic Collimator
The controls for the automatic collimator (Figure 3-20) are described in Table 3-7.

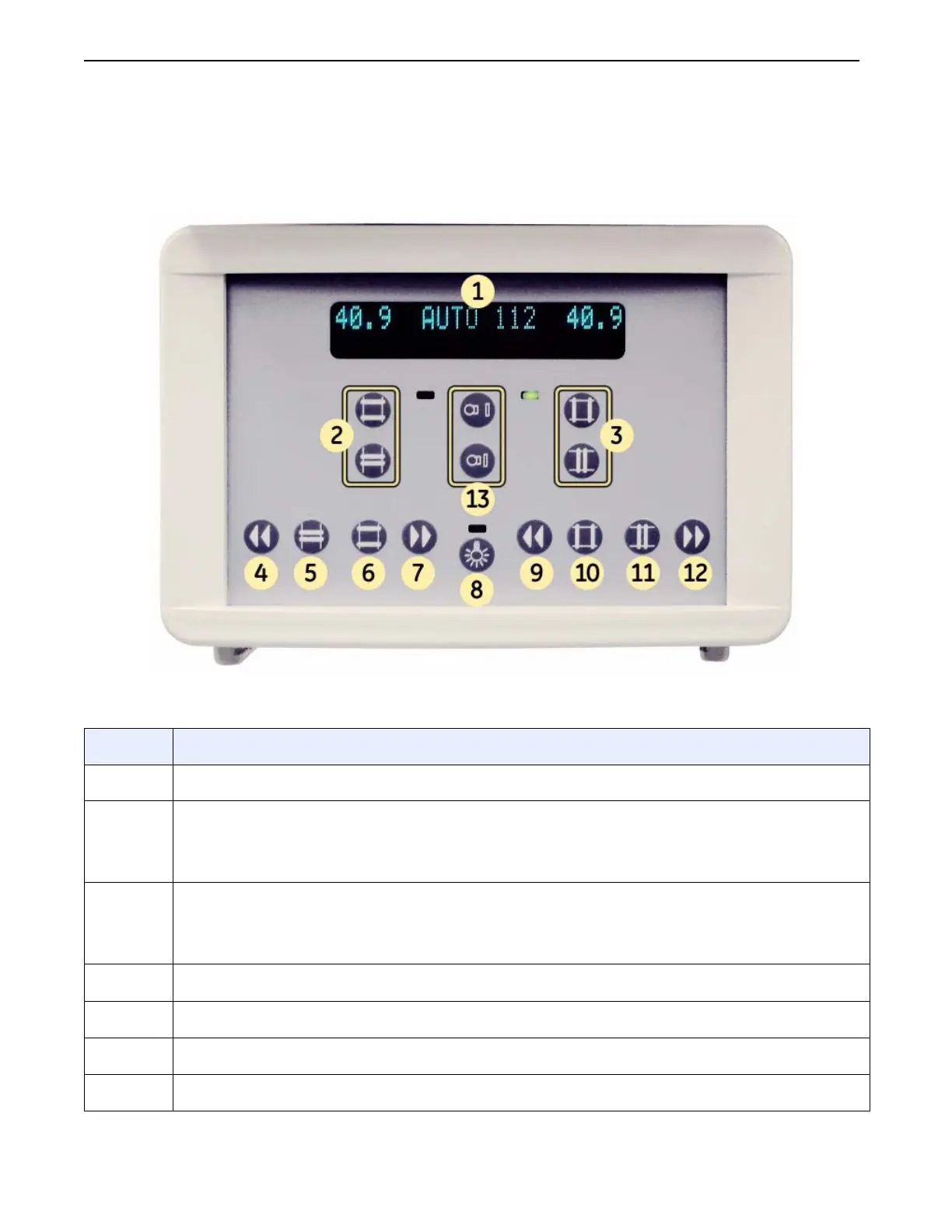

Figure 3-20 Collimator controls
Table 3-7 Collimator controls description
Item Description
1. Collimator display: transverse field size, collimator mode, SID, longitudinal field size
2. Transverse Field size Increase / Decrease
These buttons are also included on the remote control (Figure 3-23). The remote control is
an optional purchase.
3. Longitudinal Field size Increase / Decrease
These buttons are also included on the remote control (Figure 3-23). The remote control is
an optional purchase.
4. Fast Transverse Field size Decrease
5. Slow Transverse Field size Decrease
6. Slow Transverse Field size Increase
7. Fast Transverse Field size Increase
FOR TRAINING PURPOSES ONLY!
NOTE: Once downloaded, this document is UNCONTROLLED, and therefore may not be the latest revision. Always confirm revision status against a validated source (ie CDL).
