Chapter 8: Image Viewer
Definium 5000 X-Ray System 5197809-1EN Rev. 4 (13 February 2008) 8-6
Operator Manual © 2008 General Electric Company. All rights reserved.
Change Image Display
The Format/Zoom panel (Figure 8-4) controls how many images appear in the Image Viewer screen at
one time and adjusts the magnification of each image.
The Zoom buttons change the size of the selected image shown in the Viewer. Table 8-2 describes the
Zoom options.
The Display Format buttons allow you to view up to 9 images at one time.

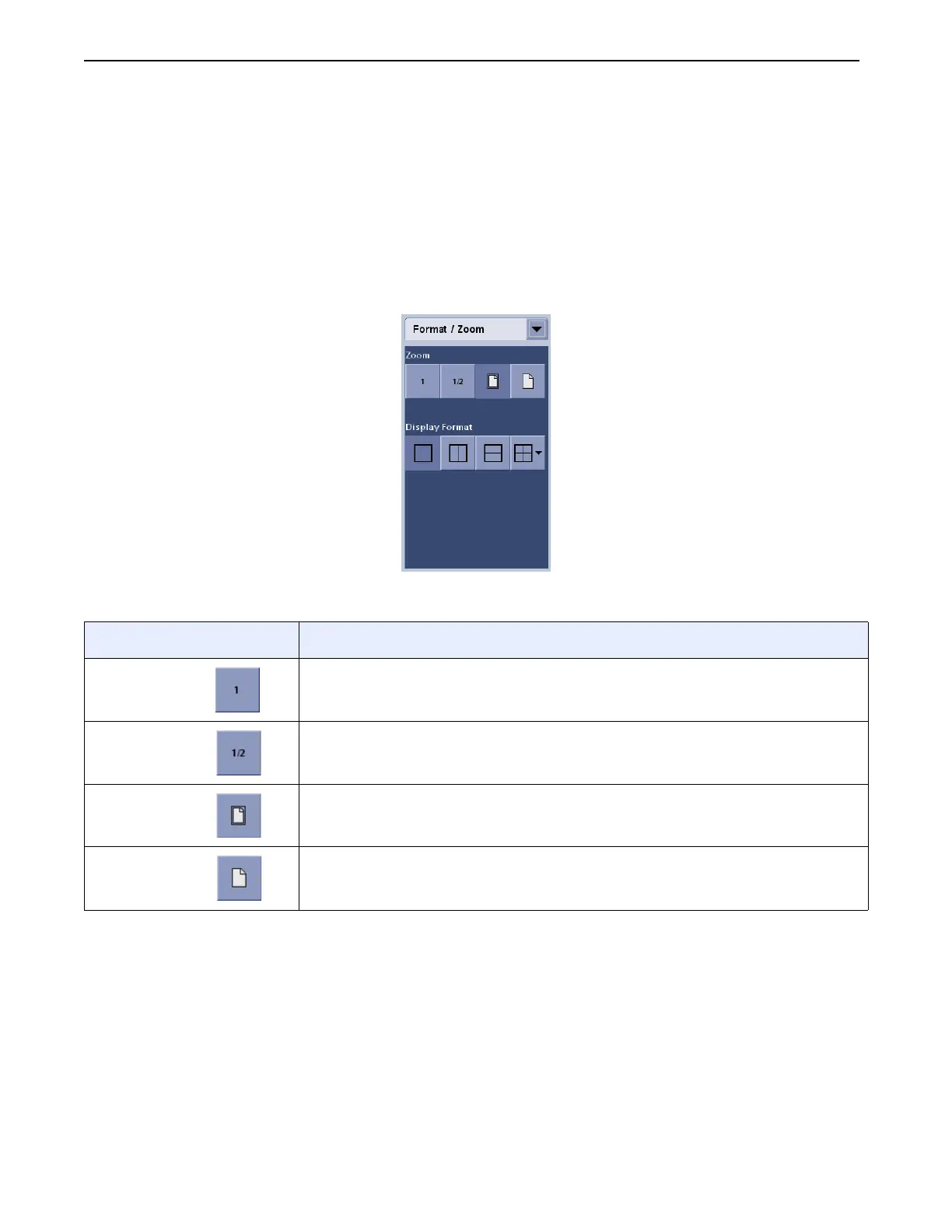

Figure 8-4 Format / Zoom panel
Table 8-2 Zoom tool descriptions
Tool Description
Zoom One Shows default the image size where one pixel on the detector equals one
pixel on the screen.
Zoom Half Reduces the image to 50% (four pixels on the detector equals one pixel
on screen).
Fit To
Screen
Scales the image to fit within the Image Viewer screen.
True Size Shows the image in the exact size it was acquired from the detector (one
centimeter on the detector equals one centimeter on screen).
FOR TRAINING PURPOSES ONLY!
NOTE: Once downloaded, this document is UNCONTROLLED, and therefore may not be the latest revision. Always confirm revision status against a validated source (ie CDL).
