Chapter 3: System Overview
Definium 5000 X-Ray System 5197809-1EN Rev. 4 (13 February 2008) 3-23
Operator Manual © 2008 General Electric Company. All rights reserved.
Grid and Accessories Holder
A holder to store grids is available for optional purchase. It is recommended that grids be stored in the
holder when not in use. The holder is mounted on the wall and can store up to 4 grids.

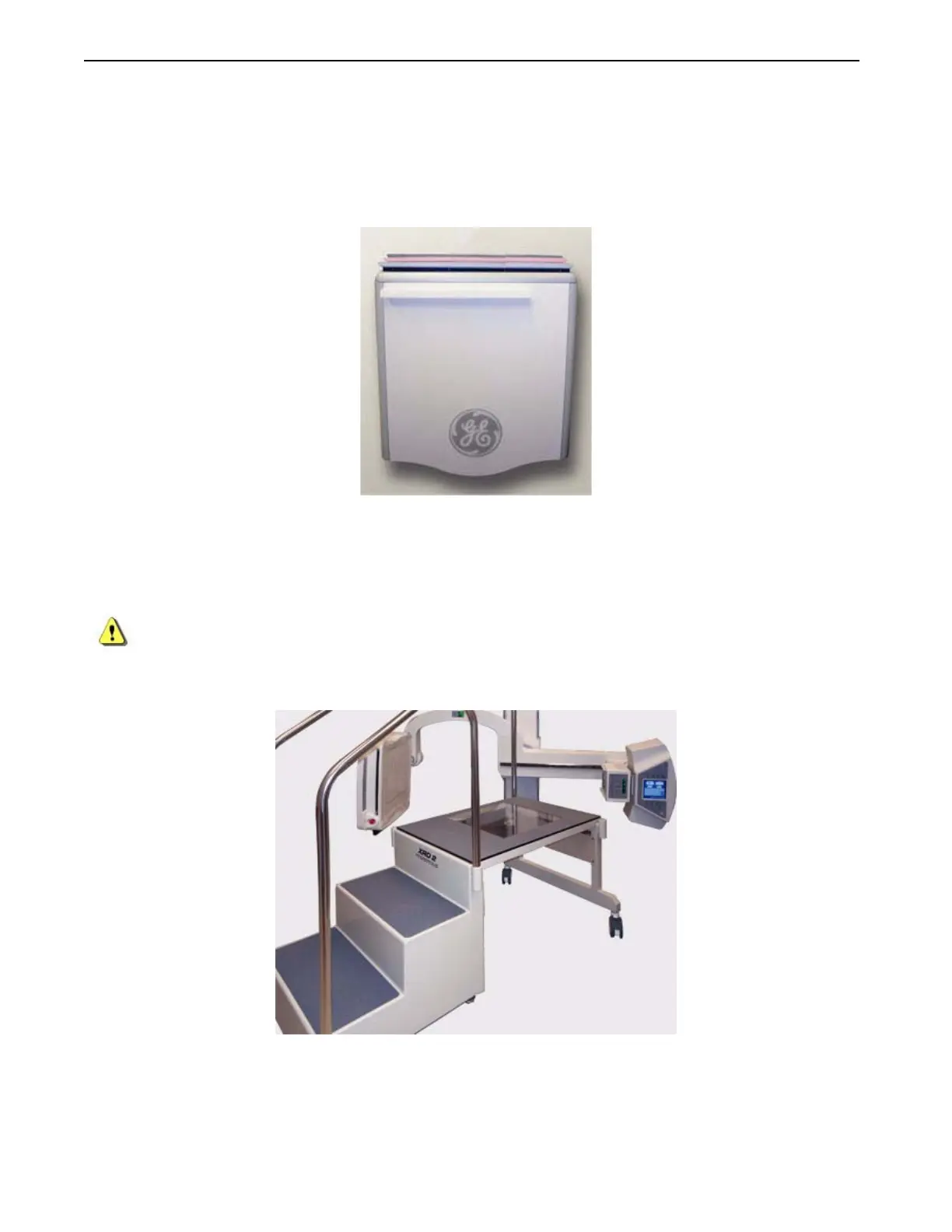

Figure 3-27 Holder with grids
Weight-bearing Stand
A stand may be used to elevate a patient into position in front of the receptor.
WARNING: Always lock the wheels before allowing the patient on the stand.
Figure 3-28 Weight-bearing stand
FOR TRAINING PURPOSES ONLY!
NOTE: Once downloaded, this document is UNCONTROLLED, and therefore may not be the latest revision. Always confirm revision status against a validated source (ie CDL).
