Chapter 8: Image Viewer
Definium 5000 X-Ray System 5197809-1EN Rev. 4 (13 February 2008) 8-23
Operator Manual © 2008 General Electric Company. All rights reserved.
Print Multiple Images
Follow this process to print multiple images.
1. Press [FILM MANGER].
The Film Composer screen (Figure 8-19) appears.

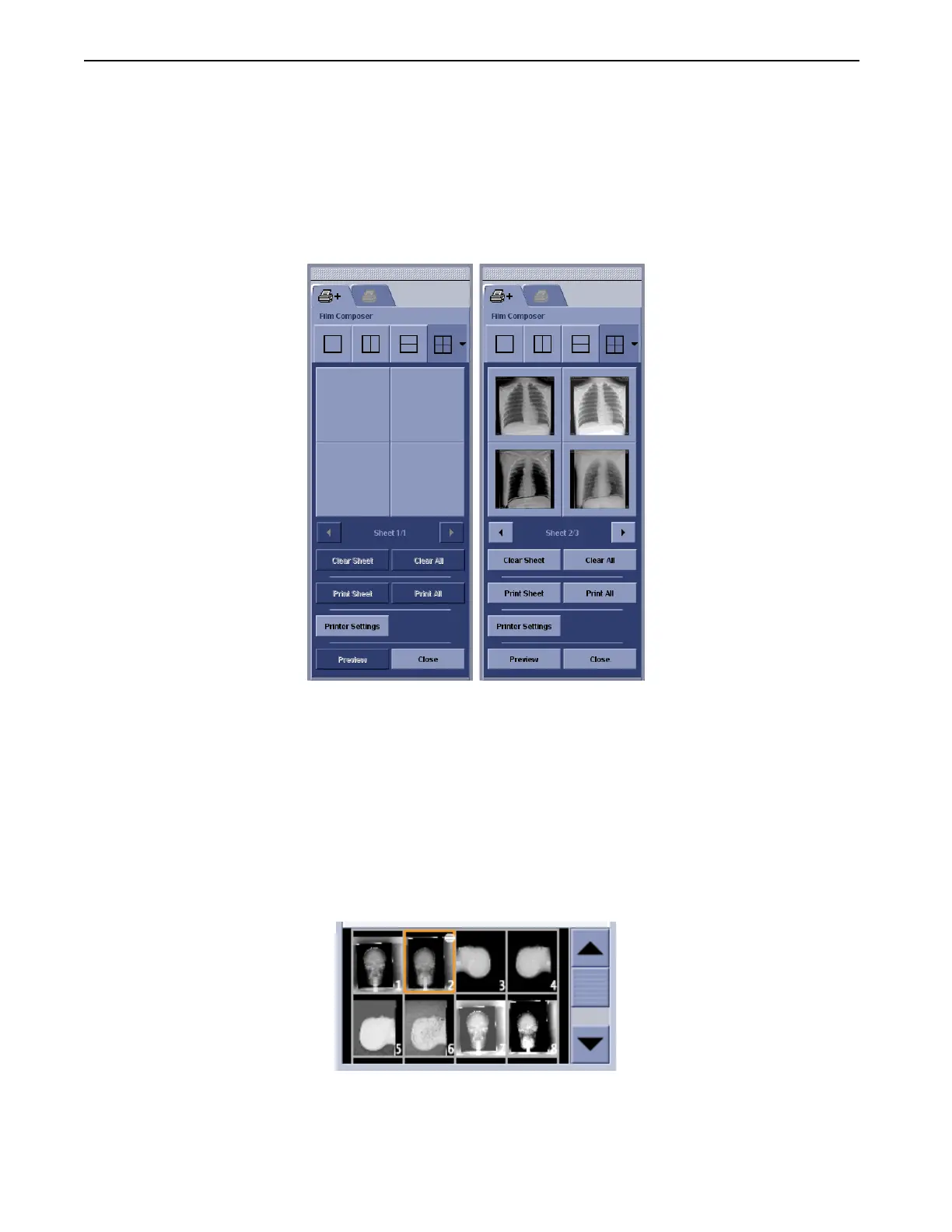

Figure 8-19 Film Composer screen - before and after images are added
2. Select the number of images you want to appear on a sheet.
If there are more images in the series than will fit on the sheet, use the Sheet [
] and [] buttons
to configure the printing options for each sheet.
NOTE: You are able to change the number of images for each sheet individually; however, changing the
format will remove any images that already exist on the sheet.
3. Drag the image thumbnails from the Images - Raw or Images - Processed panel (Figure 8-20) to the
Film Composer screen.
Figure 8-20 Images - Processed panel
FOR TRAINING PURPOSES ONLY!
NOTE: Once downloaded, this document is UNCONTROLLED, and therefore may not be the latest revision. Always confirm revision status against a validated source (ie CDL).
