GE Definium 5000 User Manual

Appendix A: Image Pasting
Definium 5000 X-Ray System 5197809-1EN Rev. 4 (13 February 2008) A-2
Operator Manual © 2008 General Electric Company. All rights reserved.
Overview
Image Pasting allows x-ray imaging of patient anatomy, such as spine and legs, that are larger than the
detector’s 41cm field of view. Previously, in film or CR, this was accomplished by the use of a “long”
cassette.
The Definium 5000 digitally pastes 2-5 overlapping exposures together to form a single image.

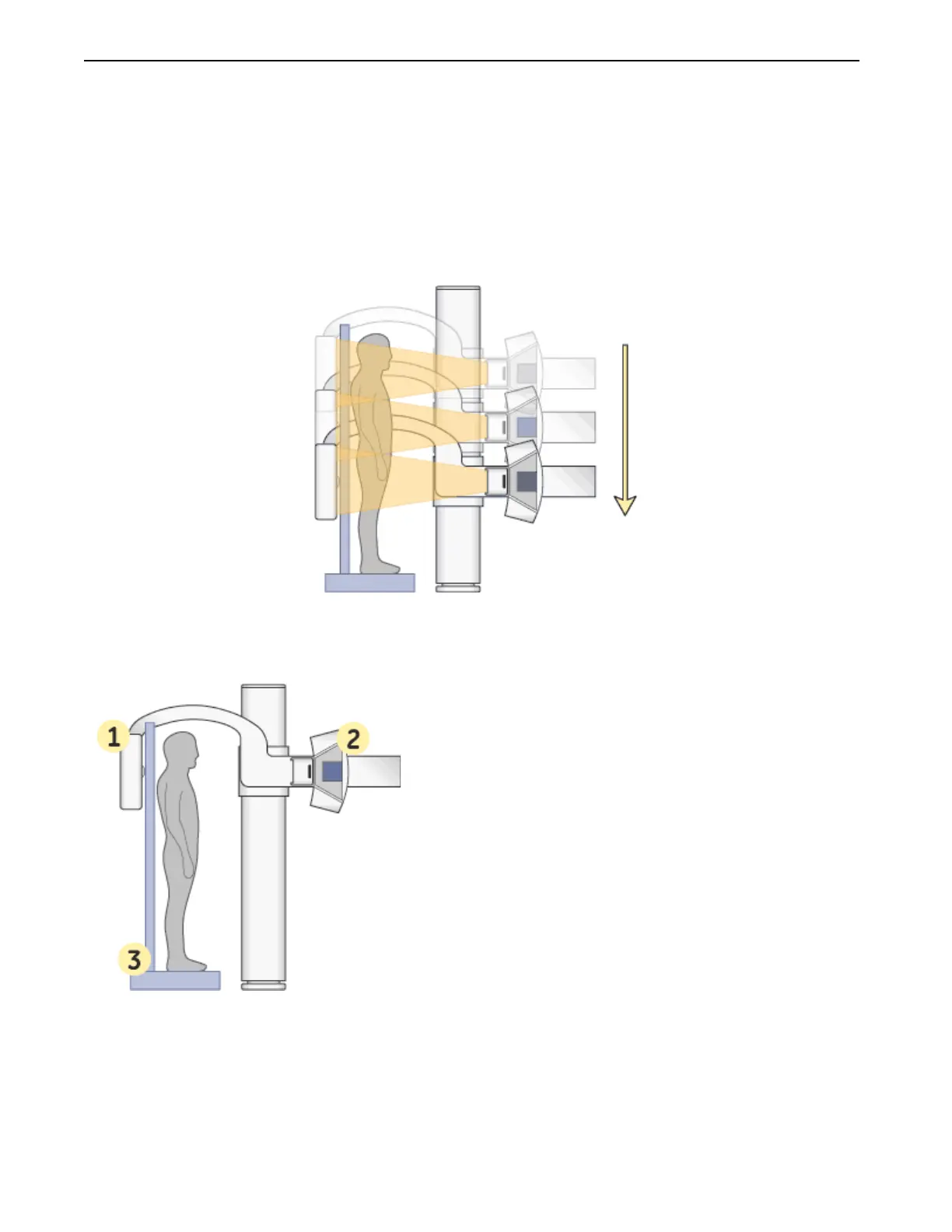

Figure A-1 Illustration of acquisition
The arrow indicates the progress of tube movement as images are acquired.
Figure A-2 Overall setup for image pasting
1. Receptor Assembly
2. X-ray Tube Assembly
3. Patient Positioner
FOR TRAINING PURPOSES ONLY!
NOTE: Once downloaded, this document is UNCONTROLLED, and therefore may not be the latest revision. Always confirm revision status against a validated source (ie CDL).
