NOTE: If performing more than one projection or series, you must perform these projections in separate
exams. To do this, complete your first projection, close the exam, reselect the patient from the
worklist, select Start Exam and select Append Exam on the pop-up screen to perform the second
paste exam.

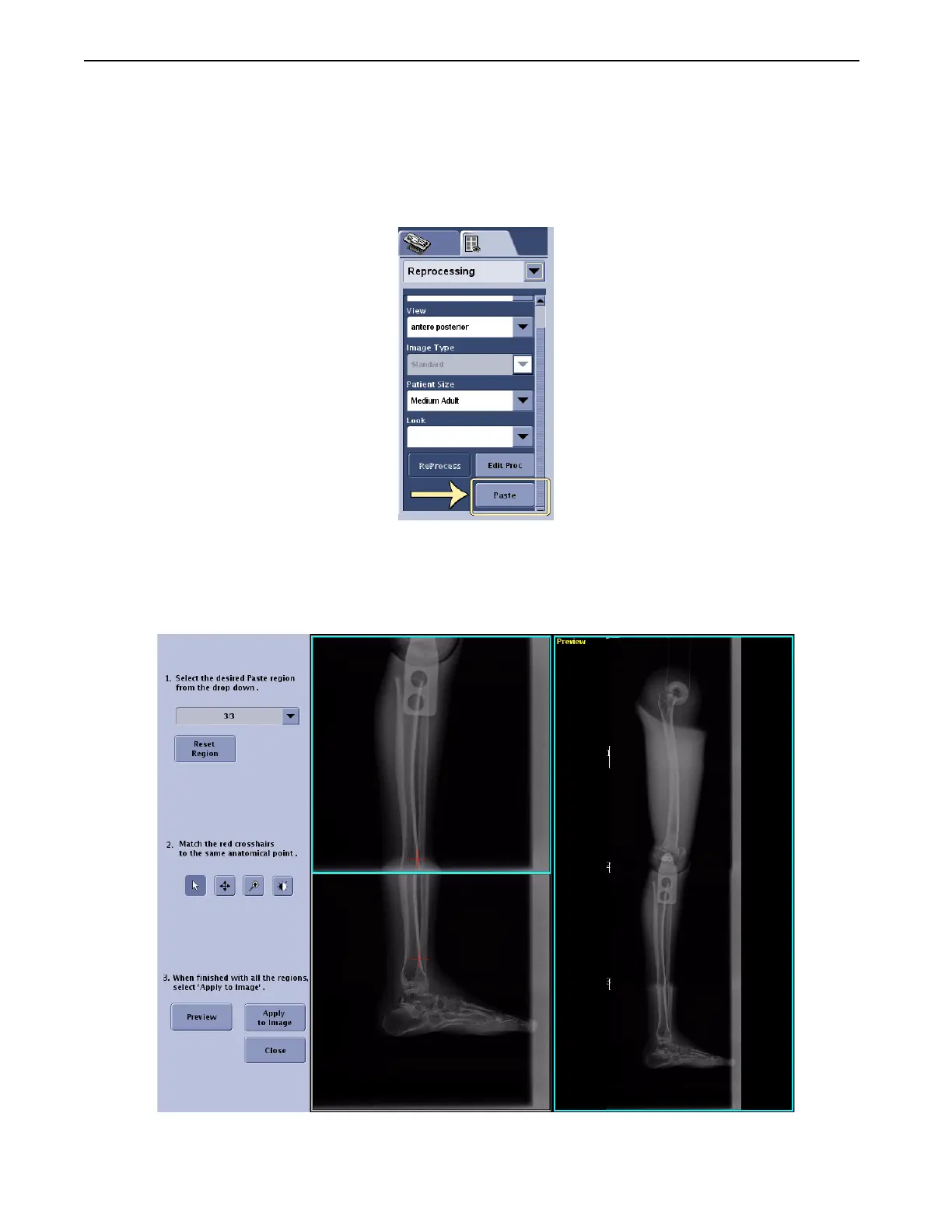

Figure A-15 [PASTE] button on Reprocessing palette
The Pasting screen (Figure A-16) shows two sets of images. The left half shows the selected pasting
region (the overlapped area between 2 sub-images). The left half is also the work area where you set the
alignment. The right half shows a preview of the pasted image.
Figure A-16 Pasting screen
