Appendix B:
Login Administration
Def
inium 5000 X-R
ay System
5197809-1EN
Rev
. 4
(13 February 2008)
B-6
Operator Manual
© 2008 General Electric Company. All
rights re
served.

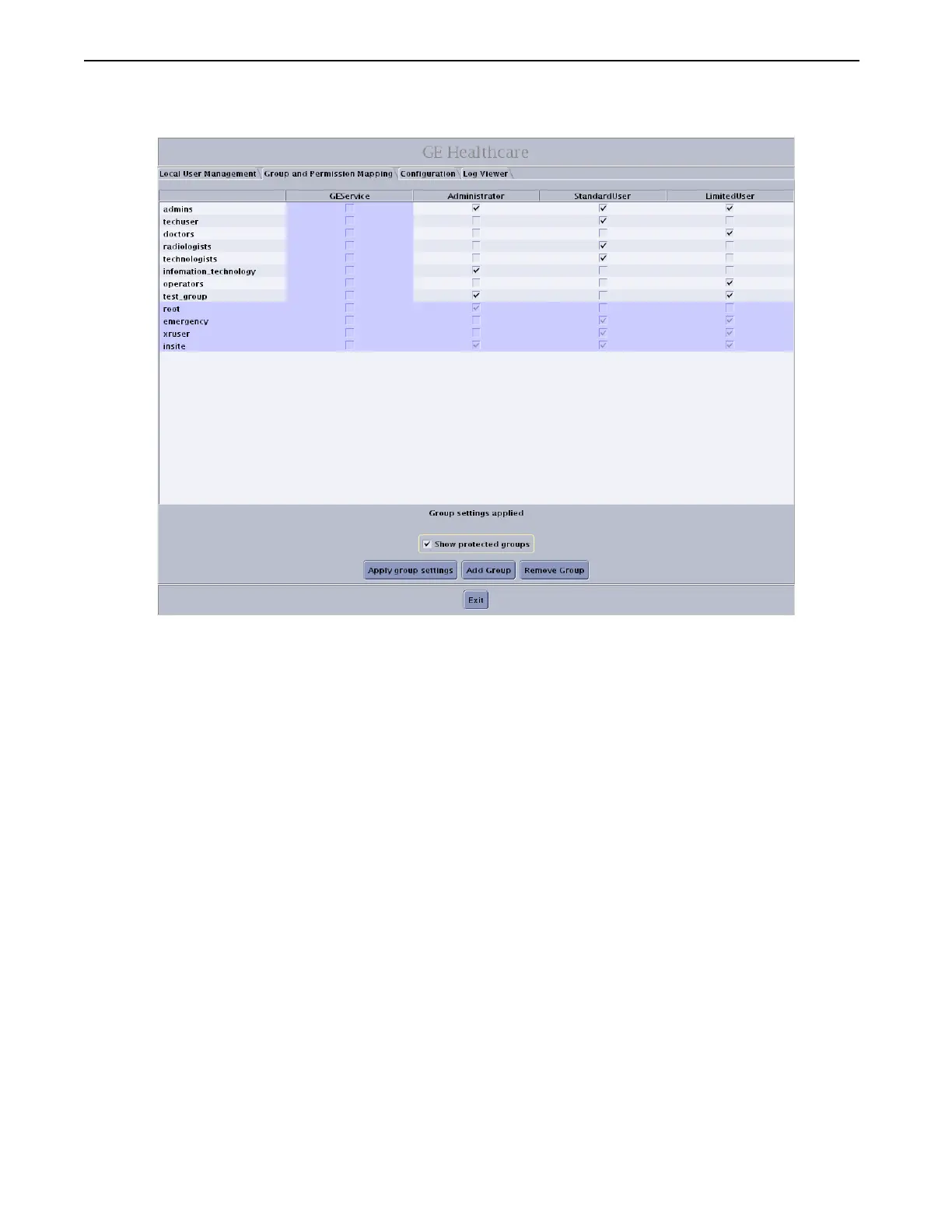

Figure B-4
Pr
otected groups
FOR TRAINING PURPOSES ONLY!
NOTE: Once downloaded, this document is UNCONTROLLED, and therefore may not be the latest revision. Always confirm revision status against a validated source (ie CDL).
237
239
Table of Contents
default chapter
5
Table of Contents
5
Chapter 1: About this Guide
12
About the Definium 5000
12
Safety Information
12
Graphic Conventions and Legends
13
Safety Notices
14
Chapter 2: Safety and Regulatory
15
Intended Use
15
X-Ray Protection
16
General
16
Safety Symbols
19
Responsibilities
21
Maximum Permissible Dose (MPD)
22
Radiation Protection
22
Monitoring of Personnel
23
Protection against Electric Shock Hazards
23
Protection against Hazards from Unwanted or Excessive Radiation
23
Product Identification
24
Certifications
25
Classification
25
Environmental Statement on the Life Cycle of the Equipment or System
25
Disposal of Waste
25
Emergency Procedures
26
Radio Frequency Interference
26
Chapter 3: System Overview
27
Hardware Overview
28
Tube, Arm, and Image Receptor
28
Control Room Interface Box (CRIB)
31
Hand Switch
32
System Movements
33
System Movement Controls
34
Position System from Touch Screen Console
37
Modify Positions
39
Emergency Stop
41
Anti-Collision System
42
Interchangeable Grids
43
Automatic Collimator
44
Tube-Collimator Assembly Positioning
46
Options and Accessories
47
Copper Filtration
47
Radiographic Mobile Tables
48
Grid and Accessories Holder
49
Weight-Bearing Stand
49
Image Pasting Patient Positioner
50
Remote Control
51
DAP Meter
52
Error Messages
53
Chapter 4: General Information
55
System Start up and Shutdown
56
Start up
56
Shutdown
56
Login and Log off
57
Standard Login
57
Invalid Password Message
58
Emergency Login
59
Log off
59
Software Reset
60
Lead Markers
61
System Status and Messages
61
Expose Hold
61
X-Ray Tube Heat Units Remaining
62
System Status Area
62
Message Log
62
Ilinq
63
Chapter 5: Worklist
66
Overview
66
Patient List Columns
71
Manage List / Find Procedures
72
Search
72
Sort by Column
72
Filter List
73
Refresh
76
Manual Refresh
76
Auto Refresh
76
Definium 5000 X-Ray System 5197809-1EN Rev. 4 (13 February 2008) TOC-2
77
Select Procedures
77
Select a Single Procedure
77
Select Multiple Procedures
77
Delete Procedures
77
Delete a Single Procedure
78
Delete All Completed, Discontinued, and Local Procedures
78
Delete Suspended Procedures
79
Add / Edit Patient Information
80
Overview
80
Add Patient
83
Edit Patient Information
84
Chapter 6: Image Acquisition
85
Overview
85
Touch Screen Control
92
Re-Start Completed or Discontinued Exams
93
Resume Suspended Exams
94
Select or Change Protocols
94
Automatic Protocol Recognition (APR)
95
Conduct a Digital Exam
96
Conduct a Cassette Exam
98
Conduct an Emergency Exam
100
End Exam
100
Suspend
101
Close
101
Discontinue
101
Automatic Exposure Control (AEC)
103
Acquisition Screens
103
Ion Chamber Detectors
106
Applications for Detector Sensing Areas
106
Areas 1 and 3
106
Area 2
107
Applications
107
AEC Limitation Messages
109
Acquire AEC Images
110
Chapter 8: Image Viewer
112
Overview
112
Tool Panel Selection
116
Select Images to View
116
Change Image Display
117
Adjust Images
118
Annotate and Mask Images
120
Customize System Annotations
123
Add Image Annotations
124
Delete Image Annotations
126
Adjust Image Shutter (Crop Image)
126
Automatic Shutter
127
Re-Process Images
128
Determine if Images Should be Retaken (DEI)
129
Corrective Actions
131
Exceptions to Corrective Actions
131
Change Pointer Controls
132
Apply Quality Check Indicator (Auto Tag)
133
Print Images
133
Auto Print
133
Manual Print
133
Print Multiple Images
134
Print Current Image
135
Orthopedic Magnification
138
Send Images
138
Save Changes to Images
138
Chapter 9: Image Management
139
Overview
139
View Patient Information
144
Load Images from a CD
144
Search List
145
Sort by Column
145
Open Exams and Images
146
Copy Exams and Images
146
Copy Exams to a Network Host
146
Copy Images to Another Exam
147
Copy Exams to a CD
149
Delete Exams, Series, or Images
150
Lock Exams from Deletion
151
Unlock Exams
151
Make Exam Anonymous (De-Identify)
151
Chapter 11: Set Preferences
153
System
154
Network Connections
154
Add or Edit Network Host
155
Remove Network Host
158
Perform C-Echo Test
159
Printers
159
Add or Edit DICOM Printers
160
Remove DICOM Printer
164
Worklist
165
Default Query
165
Auto Refresh
167
Preset Names
167
Add Preset Names
168
Edit Preset Names
168
Remove Preset Names
169
Image Management
170
Copy Exam
170
Auto Tag (Quality Check)
171
Auto Print
171
Orthopedic Magnification
174
Auto Send (Auto Push)
174
Auto Delete
175
Image Viewer
178
Configure Pre-Set Annotations
178
Add Pre-Set Annotation
179
Edit Pre-Set Annotation
179
Remove Pre-Set Annotation
180
DEI (Detector Exposure Index)
181
Change the DEI Display
182
Change the Lower and Upper Limits
182
Enable or Disable Technical Mode
183
Export DEI Log
183
Exam
183
Image Processing
184
Change Default Factory Looks for Exams
184
Build Custom Looks
185
Change Image Processing from the Viewer
189
Tissue Equalization Overview
189
TE Usage
190
Protocols
192
Backup Protocol Database to CD
193
Retrieve Protocol Database from CD
194
Edit Protocol Database
194
Add or Edit Category
195
Add or Edit Exam
196
Add or Edit View
197
Protocol Editor Copy Functions
202
Copy Category
202
Copy Exam
203
Copy View
203
Appendix A: Image Pasting
217
Overview
217
Image Pasting Patient Positioner
219
Lock Positioner in Place
219
Move Lateral Positioning Bars
221
Image Pasting Acquisition
221
Image Viewer
224
Paste Images (Create Composite Image
224
Correct Pasting
226
Add New Images to Pasted Composite
228
Select Images
228
View Pasted Composite Image
229
Re-Process Images
229
Change Looks Processing (Vertical Equalization
230
Print Pasted Images
231
Image Pasting Preferences
231
Add or Edit Image Pasting Protocols
231
Edit Image Processing
232
Appendix B: Login Administration
233
Enabling EA3 Login
233
Understanding Local and Enterprise Environments
234
Understanding Privileges, Groups, and Users
234
Administering Groups and Users
235
Accessing the Login Administration Screens
235
Working with Groups
236
Add Groups
236
Assign Privileges to Groups
237
Remove Groups
237
Show Protected Groups
237
Working with Users
239
Add Users
239
Assign Users to Groups
240
Change User Password
240
Remove Users
241
Show Protected Users
241
Viewing the Audit Log
243
Administering System Configuration
244
Change Display Settings and Enable Enterprise Authorization
244
Configure Enterprise Authorization
245
Configure Audit Log
247
Use LDAP Console
248
Appendix C: Technical Specifications
249
Parameters and Ranges
249
Factors
249
Duty Cycle
250
Generator Accuracy
250
X-Ray Source Assembly Filtration
250
