Chapter 6: Image Acquisition
Definium 5000 X-Ray System 5197809-1EN Rev. 4 (13 February 2008) 6-7
Operator Manual © 2008 General Electric Company. All rights reserved.

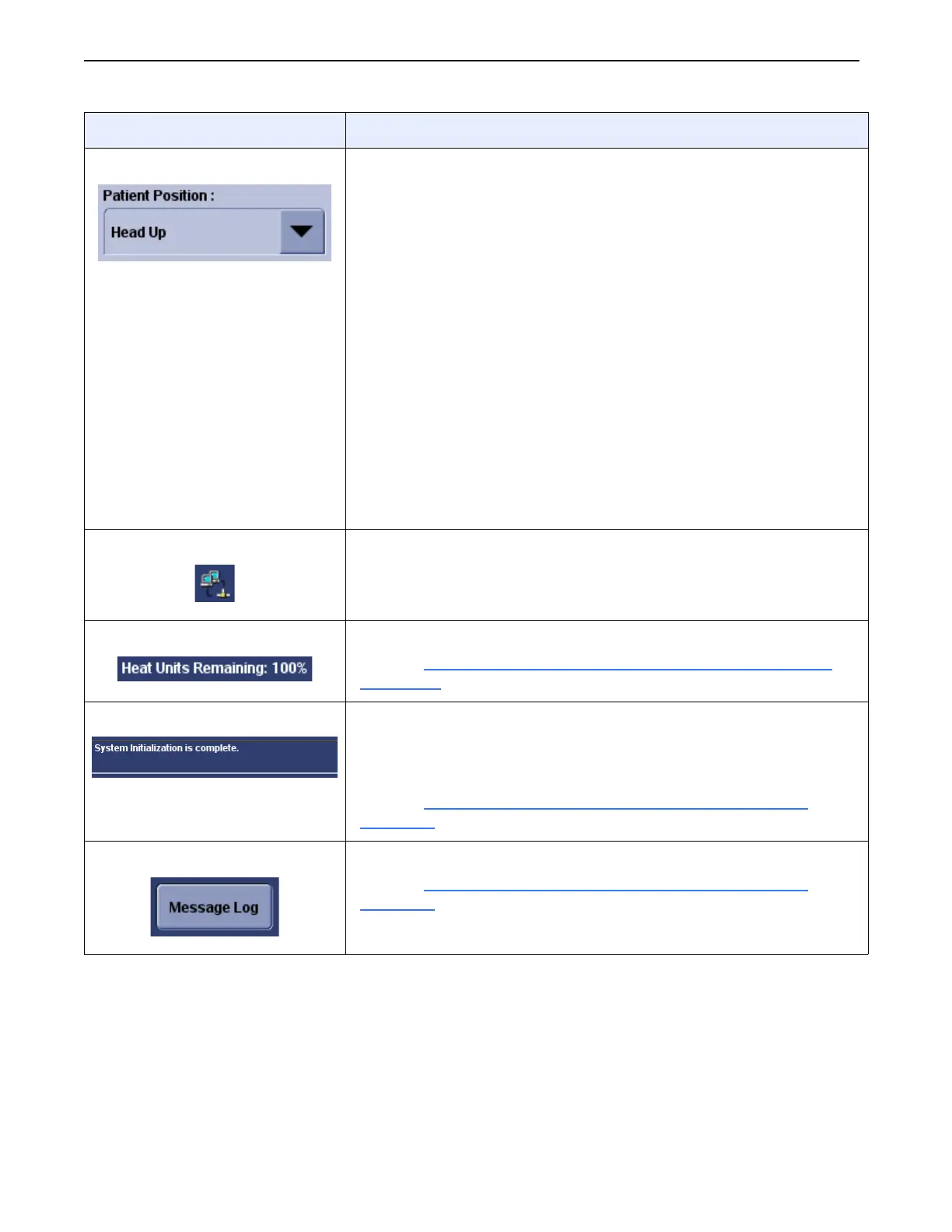

Patient Position: Selects the patient position relative to the detector. The available
options change if the currently selected protocol view is for paired
or non-paired anatomy.
For paired anatomy, the available options are:
•Digits to Head
•Digits to Feet
•Digits to Front
•Digits to Back
For unpaired anatomy, the available options are:
•Head Up
•Head Down
NOTE: The above lists of positions for paired and unpaired anatomy
are a general guidelines only. Some views have different
options.
network connection status Appears when the Definium 5000 is connected to the hospital
network.
Heat Units Remaining Shows the percentage of heat units remaining.
Refer to Chapter 4:
General Information-X-ray Tube Heat Units
Remaining (p. 4-8) for more information.
system status Displays the last system status message.
NOTE: To clear the system status area, open the Message Log and
close it again.
Refer to Chapter 4:
General Information-System Status and
Messages (p. 4-7) for more information.
[MESSAGE LOG] Brings up the message log since the last system re-start.
Refer to Chapter 4:
General Information-System Status and
Messages (p. 4-7) for more information.
