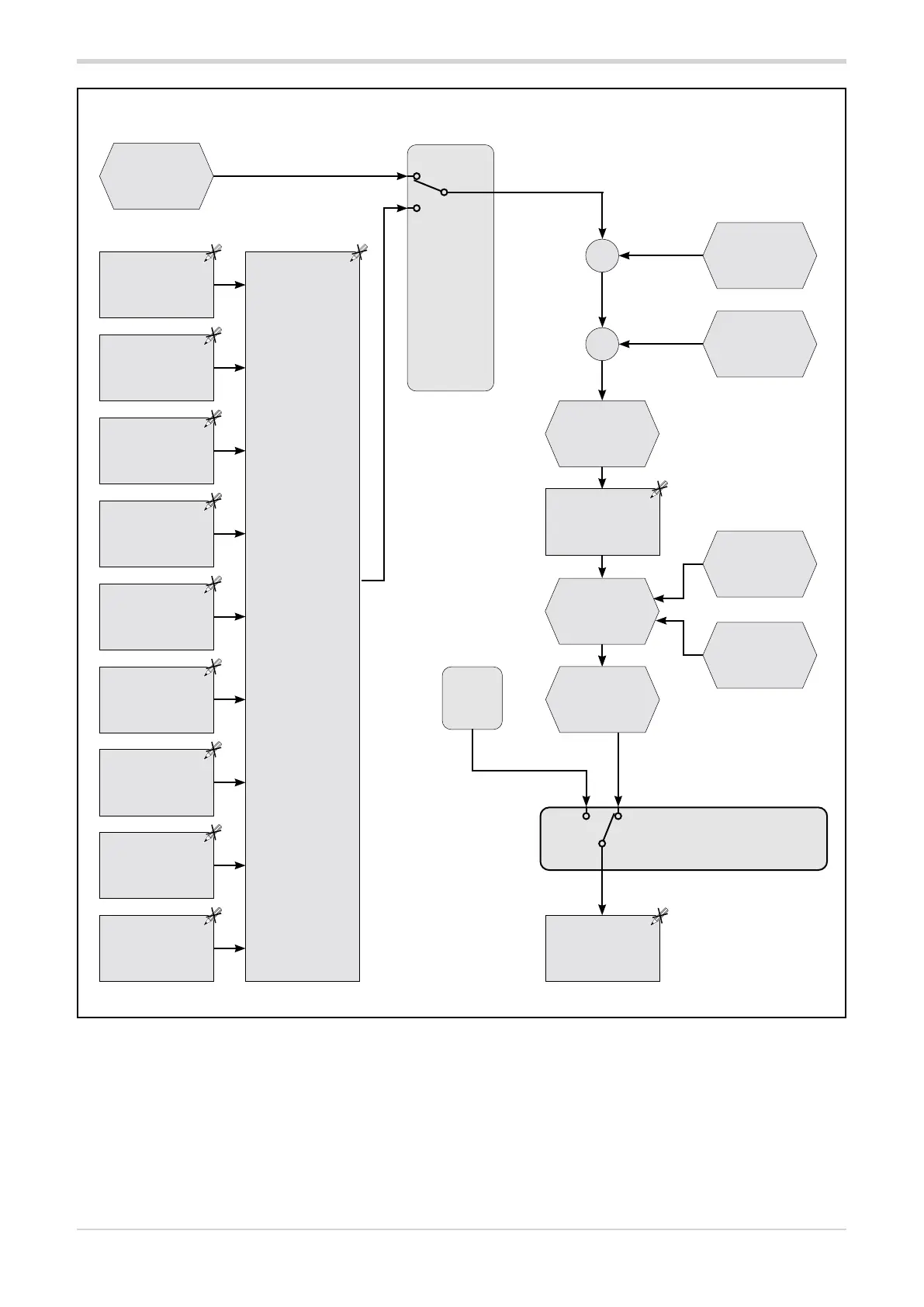

Functional diagram of controls
Ø
BIT_SOFTWARE_ON_OFF_x
STATUS_W_x
dIG1, dIG.2, dIG.3, dIG.4
BIT_AUTO_
MAN_x
STATUS_W_x
dIG1
dIG.2
dIG.3
dIG.4
MAN
ON
AUTO
OFF
×
+
Analog input 1
In.A1
FW_POWER_x
Ou.P_x
Analog input 2
In.A2
Analog input 3
In.A3
Digital input 1
In.Pwm1
Digital input 2
In.Pwm2
Reference power
SPU_x
Digital input 3
In.Pwm3
Power from GPC-M
FW_POWER
Power from GPC-E1
FW_POWER
Power from GPC-E2
FW_POWER
Manual power
MANUAL_
POWER_x
Output power
offset
P.oFS_x
Gradient for
control output
G.Out_x
Percentage of
power output
P.PEr_x
Minimum trig-
ger output
L.oP_x
RMS current
limitation
hd.5_x
Fu.tA_x
Feedback
hd.6_x
Output power
correction
with x = 1...3
