Gerber Solara ion Web Pages
4/29/10 Rev G

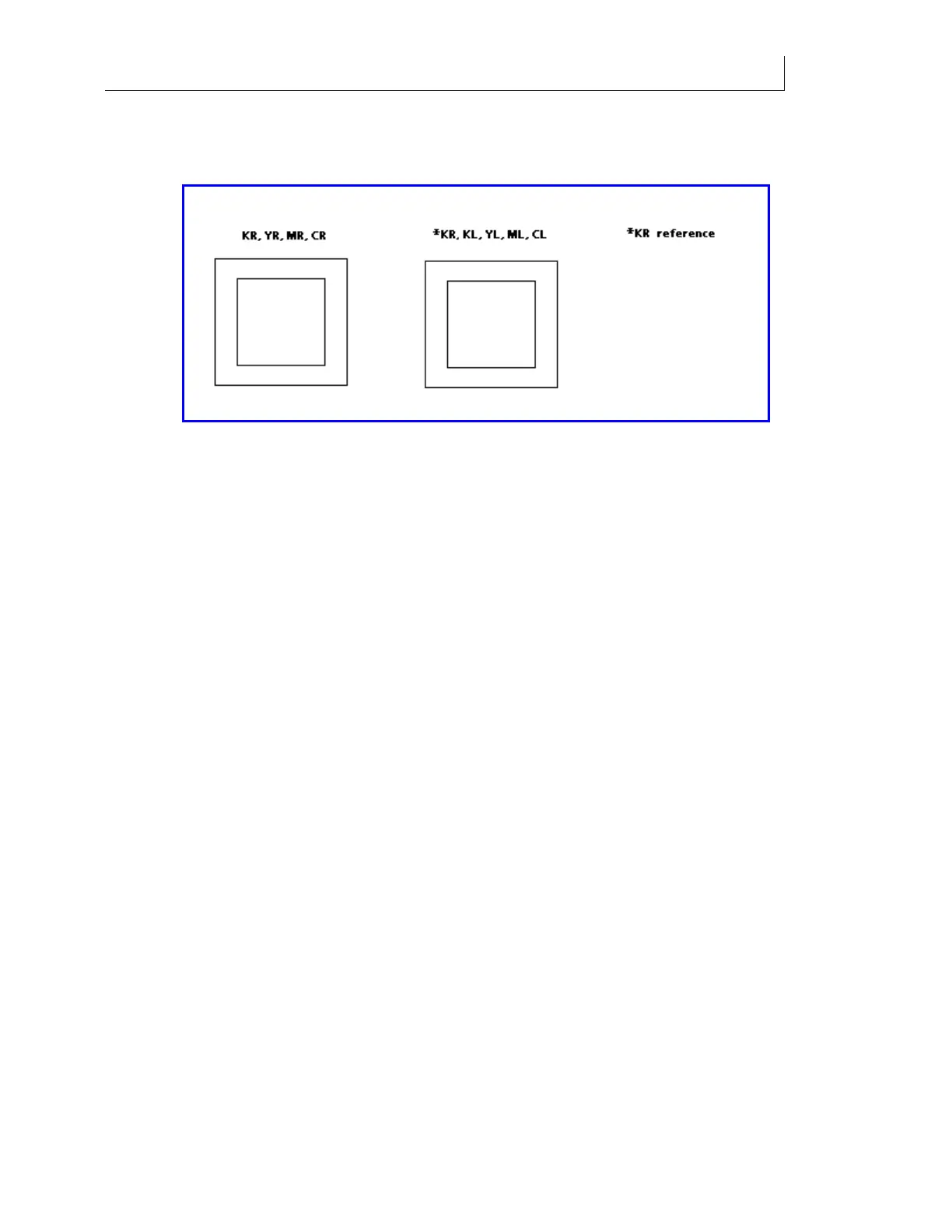

6 Reprint the job and make adjustments to values on Head Calibration page until all the
unidirectional box prints show best alignment position to be at zero position (center of
box), +/- 1.
7 By looking at the thickness in the vertical lines of these boxes, you can verify your
electrical alignments (720 Uni) were done correctly.
8 The thickness of the line should be less than 0.020" (0.508mm).
