CHAPTER 4
57
Loading Inks and Materials
4/29/10 Rev G
CORRECT
INCORRECT

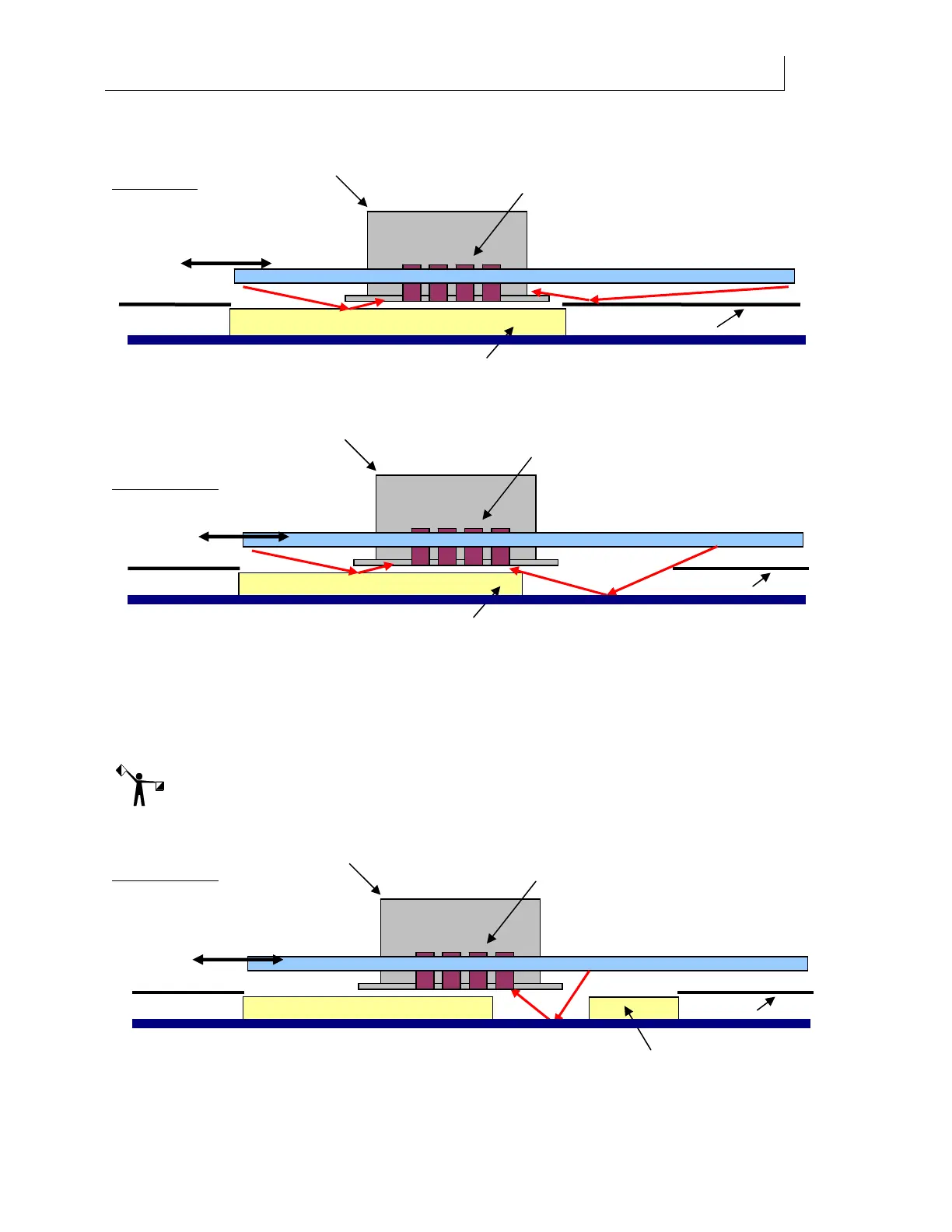

Similarly, avoid arranging boards on the table with gaps. Leaving gaps between boards will
result in UV light reflecting back into the print head and causing nozzle blockages. Sacrificial
material (waste material) should be used to fill any gaps.
Note: Sacrificial material should be the same thickness as the board to be printed. Thicker
material might strike the carriage whereas thinner material will allow UV light to reflect back
into the print heads.
INCORRECT
Carriage
Print heads
UV shield
Board
Reflected UV
UV lamps
Carriage
Print heads
UV shield
Board
Reflected UV
UV lamps
Carriage
Print heads
UV shield
Board
Reflected UV
UV lamps
Carriage motion
Carriage motion
Carriage motion
