Loading Inks and Materials
4/29/10 Rev G
CORRECT

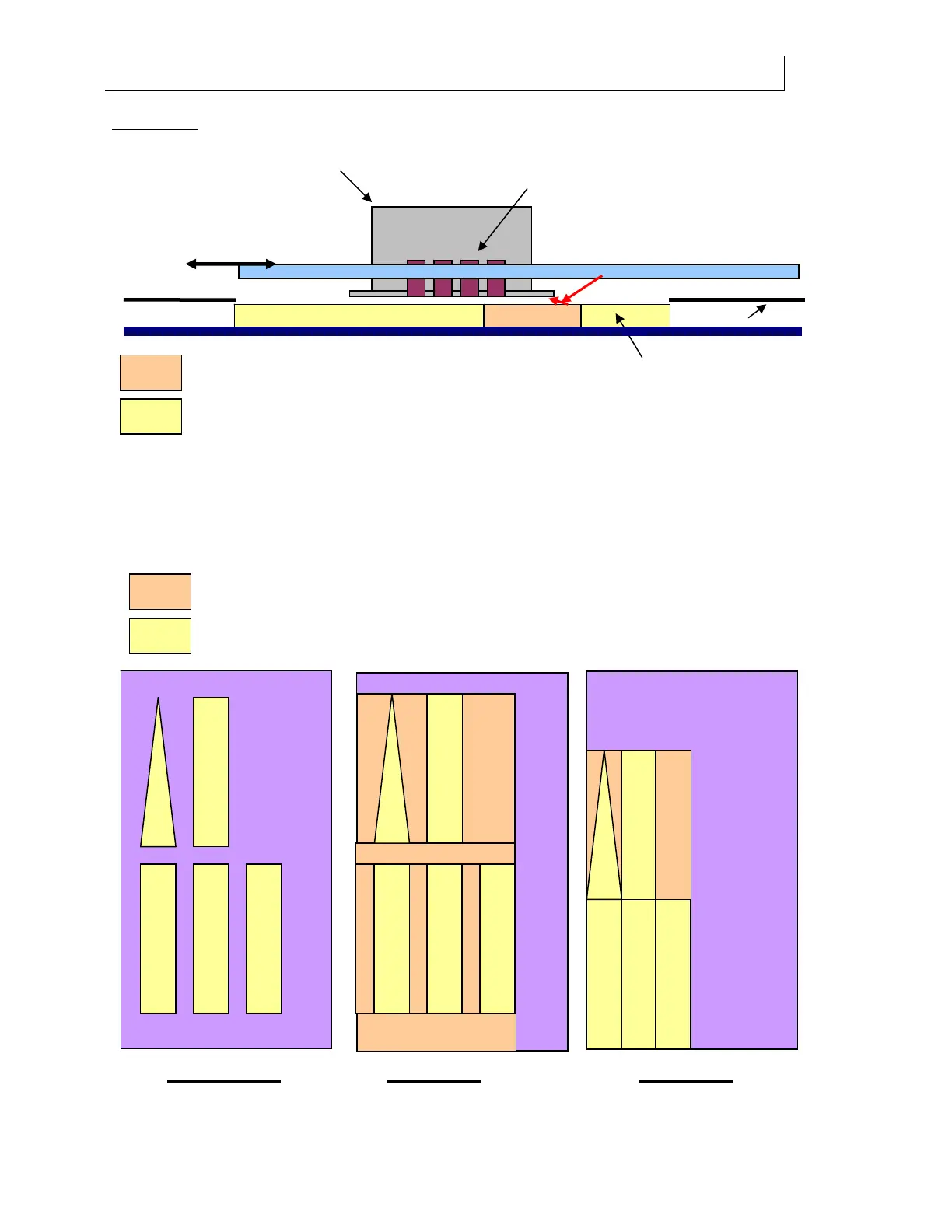

Arrange the boards on the table in order to avoid gaps and prevent reflected UV light by using
sacrificial material or butting the boards next to each other. Irregular shapes will need to be
used within fitted templates. Any sacrificial material must be the same thickness as the board to
be printed. Please see diagram below showing the table as viewed from above:
Table Fron
Viewed from above
Sacrificial material
Board to be
rinted
INCORRECT CORRECT CORRECT
Carriage
Print heads
UV shield
Board
Reflected UV
UV lamps
Sacrificial material
Board to be
rinted
Carriage motion
