Holder C270 - Driving mode with hydrostat

Operation C250 ... C370
Translation of Original Operating Manual 156319-04 101

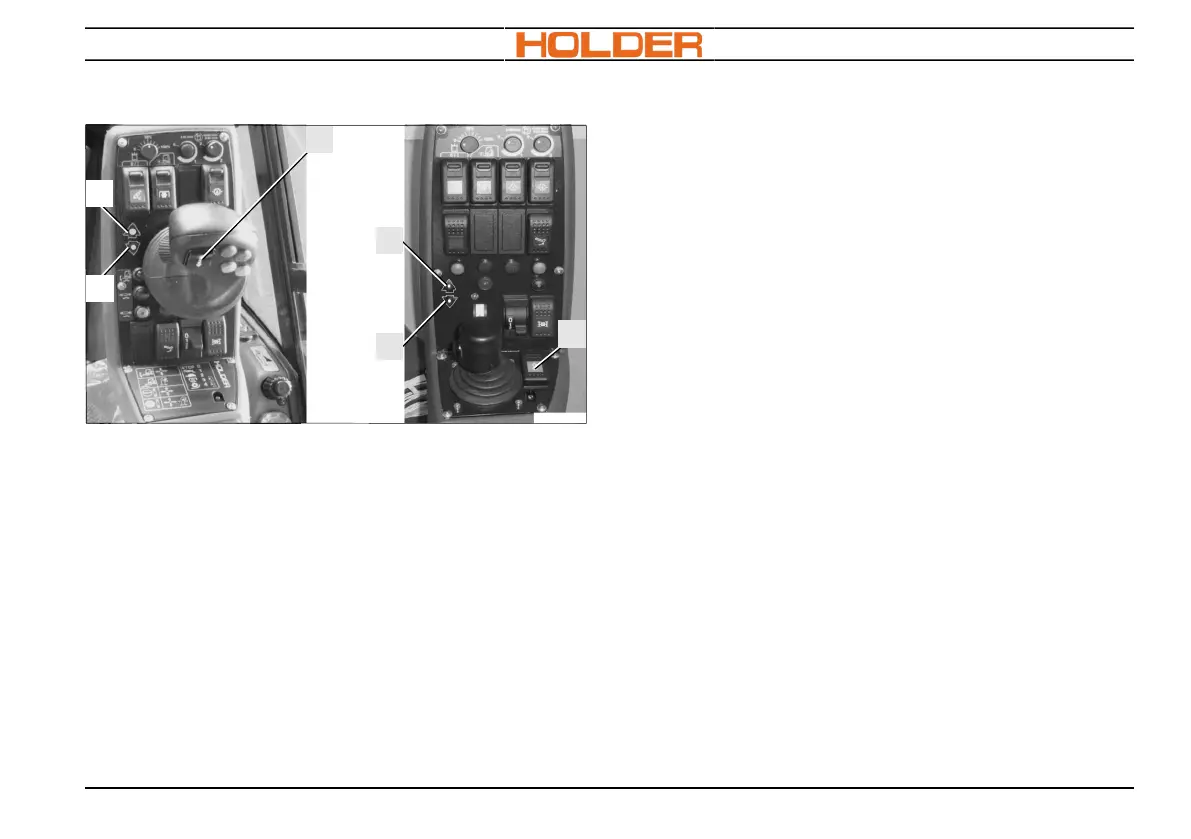

Driving mode with hydrostat
C270_059a
1
2
2
3
4
3
1. Start engine (see Start-up "Starting engine",
page 94).
2. Select the desired direction of travel with the
direction switch (1, 4).
3. Switch position (1, 4) = idle
lights (2, 3) are off
Switch 1 (Hydraulic set 2)
4. Switch (1) pressed upward = forward:
light (3) is lit up in green.
Switch (1) pressed down = reverse:
light (2) lit up in red.
Switch 4 (Hydraulic set 1)
5. Switch (4) pressed downward = forward:
light (3) is lit up in green.
Switch (4) pressed upward = reverse:
light (5) is lit up in red.
