Holder C270 - Position of the lubrication points

Maintenance Instructions C250 ... C370
Translation of Original Operating Manual 156319-04 245

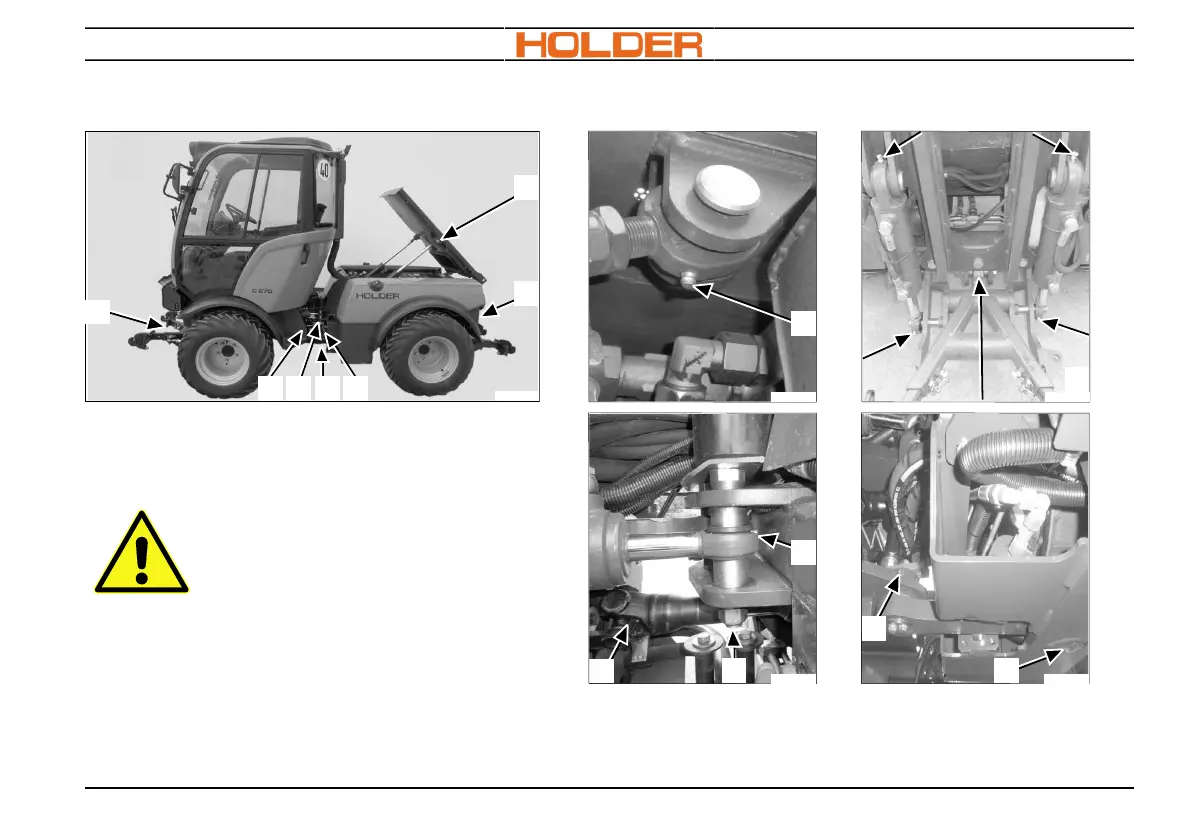

Position of the lubrication points
C270_107
2
1
3
6
2
5
4
1
C270_110
2
C270_108
Grease lubrication points according to mainte-
nance specifications.
WARNING
Danger of burns from hot
parts
•
Allow the vehicle to cool down and
take it out of operation before
service work
3
6
5
C270_109
4
4
C270_127
