Operating the implement servopump*
The implement servopump is a device for operat-
ing attachments with high hydraulic power require-
ments, e.g. cylinder mowers. The working rotation-
al speed of the attachment can be adjusted inde-
pendently of the vehicle's engine speed.
The power of the implement servopump*can be
regulated from 0 to 80 l/min and it has a pressure
of 250 bar.
Connections at the front (see page 188).

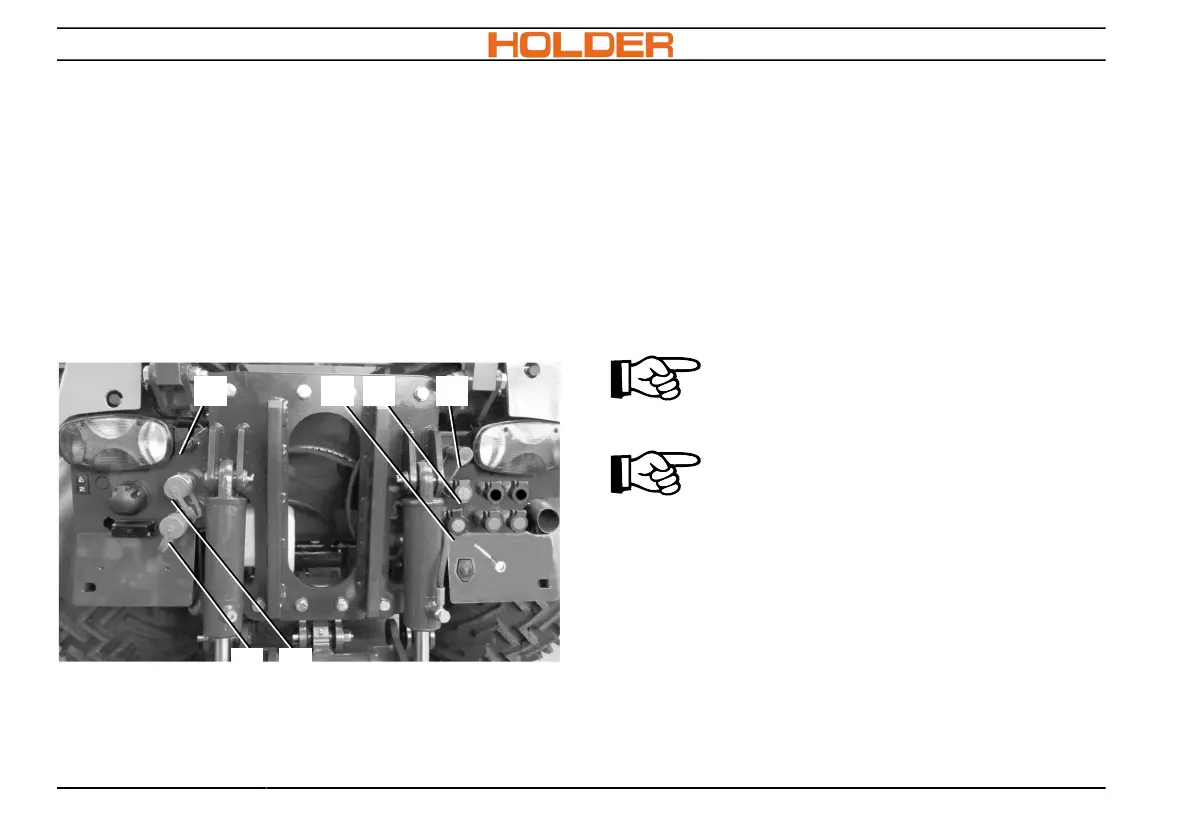

Rear view
(C) Drive servopump, volume divider II
(D) Return servopump, volume divider II
(E) Leakage oil connection
(F) Implement coding socket
1. Connect the hydraulic hoses and the leakage
oil line of the attachment to the correspond-
ing plug-in couplings at the front end, rear
end on the vehicle.
2. Connect the implement coding plug of the at-
tachment to socket (F).
ADVICE
Only one implement coding plug may
be inserted.
ADVICE
If a new or unknown attachment is
operated with the implement pump,
the cable set for implement coding ID
no. 154604 must be used. The correct
coding must be determined in consul-
tation with the implement manufac-
ture and Max Holder GmbH.
