Holder C270 - Right-hand operating console (with small joystick)

Description C250 ... C370
52 Translation of Original Operating Manual 156319-04

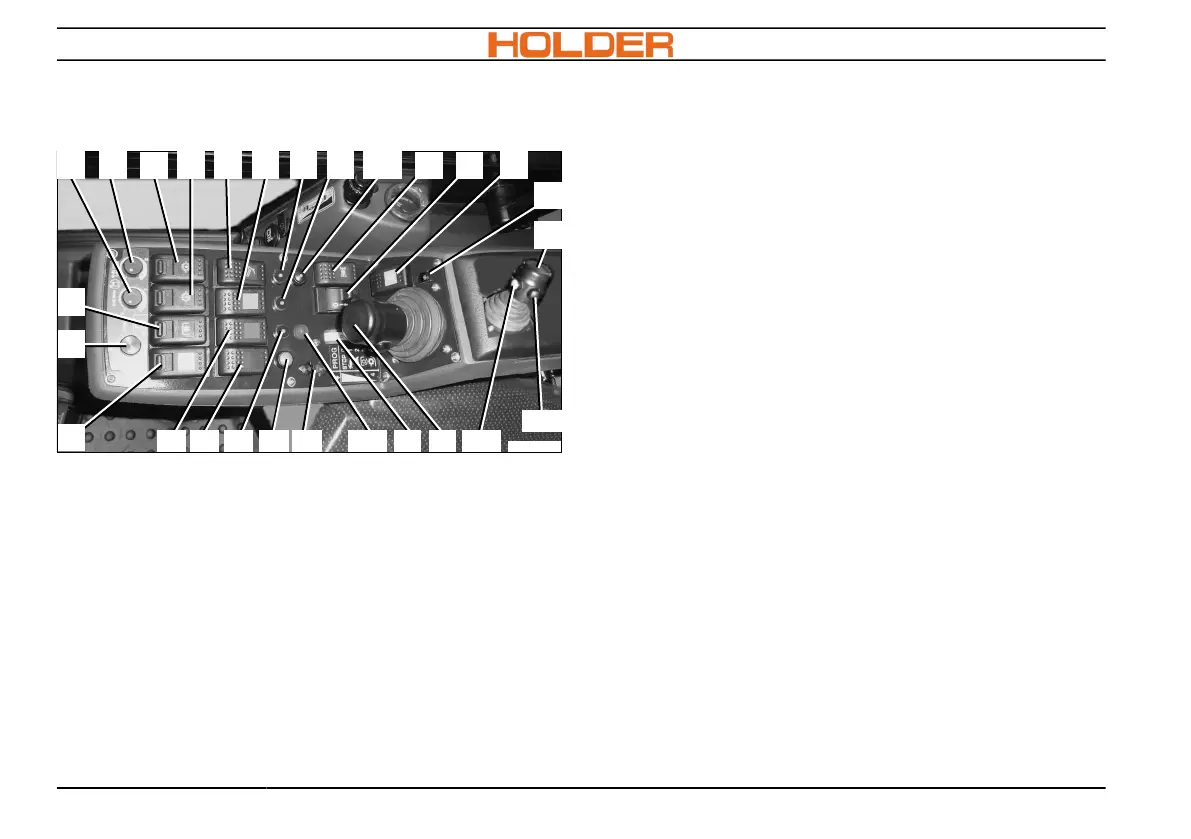

Right-hand operating console (with small
joystick)
C270_056a
7
2
2a
1a
1
3 4 4a3a
15
13
14
8
9
10
11
11c
11a
11d11b9a6a5a65 1112
1 Volume divider, circuit 2, 40-60 l/min (alter-
native implement servopump)
1a Volume divider, circuit 2 (alternative imple-
ment servopump)
2 Volume divider, circuit 1 0-25 l/min
2a Volume adjustment, circuit 1
3 Tipping system or rear lift switch
3.a Floating position button for switch 3
4 Inclination adjustment switch for the front lift
4a Dummy plug
5 Hydraulic coupling switch, blue
5a Floating position button for hydraulic cou-
pling, blue
6 Hydraulic coupling switch, green
6a Floating position button for hydraulic cou-
pling, green
7 Switch for differential lock
8 Driving programme switch
9 Direction switch
9a Direction indicator
10 Illumination diode for operating console
11 Joystick up, down for front lift. Joystick left,
right for hydraulic coupling black, green
11a Floating position button for hydraulic cou-
pling, black, green
11b Indicator light for front lift floating position
