Holder C270 - Attaching implements

Attachments C250 ... C370
Translation of Original Operating Manual 156319-04 149

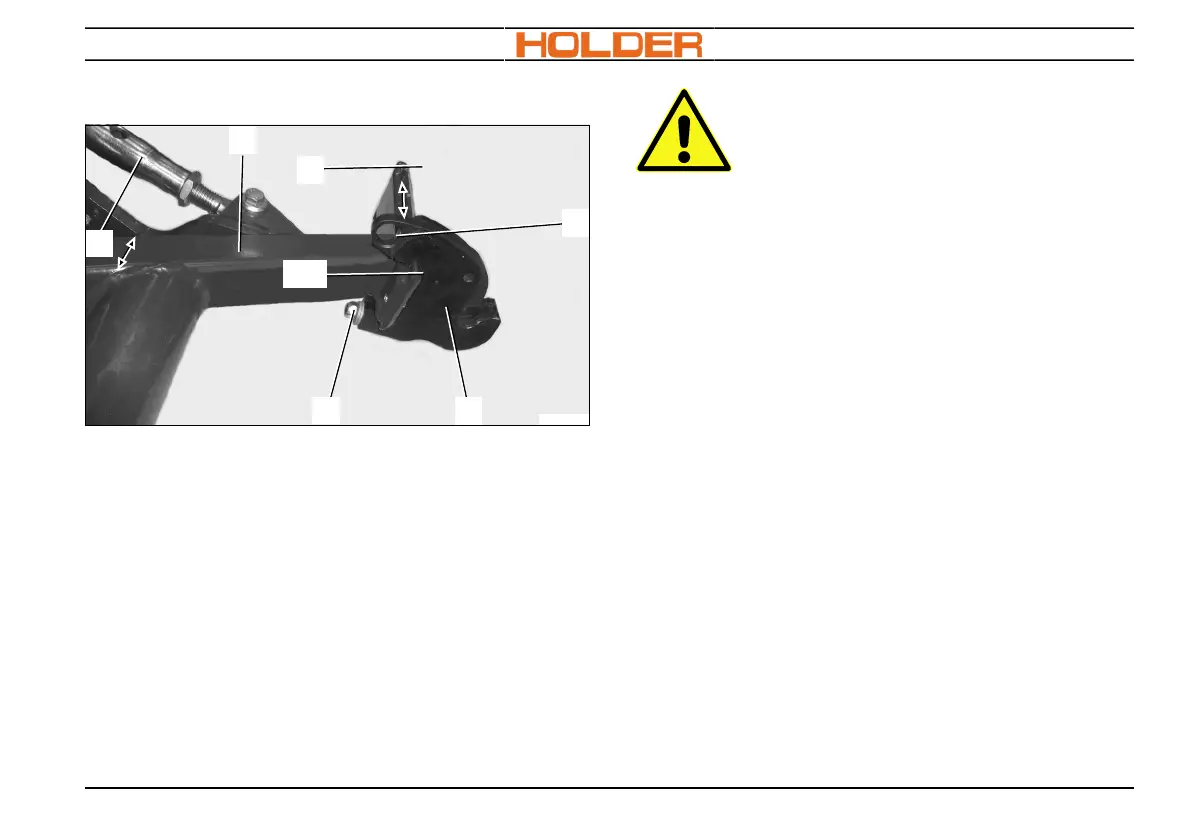

Attaching implements
C270_070
4
3
2
1
5
I
I N
1 Lower link frame
2 Quick-detach coupling
3 Catch hook
4 Clamping screw
5 Lateral adjustment of the lower link frame
The various attachments are attached to the front
or rear lift*.
The lifts are equipped with category I and I N. Pin
diameter 22 mm: The lift can be correspondingly
adjusted. To do this, the attachments are prepared
on the support pin for attachment.
DANGER
Danger of accident
•
Use only the equipment described
below for mounting the attach-
ment
•
Observe the previously described
danger warnings
* Optional equipment
