Manual body frame
1
2
C270_150
A
B

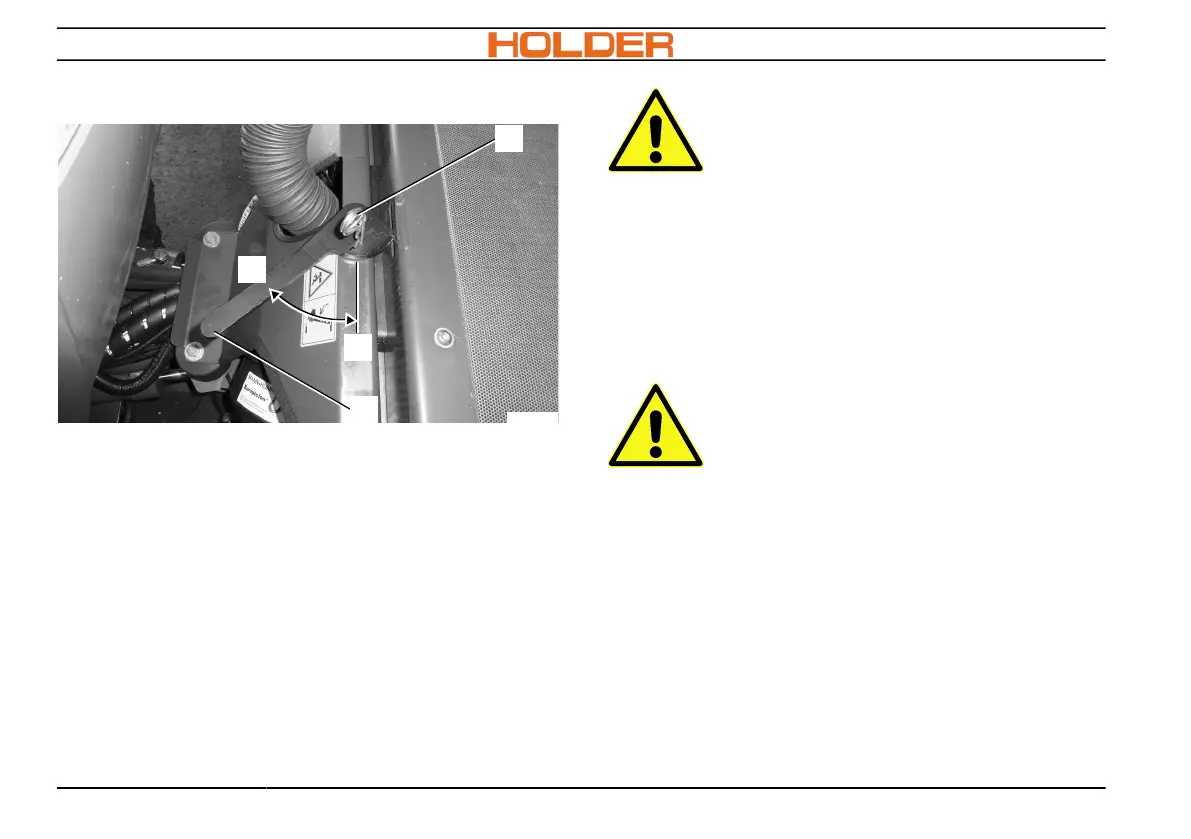

The body frame is secured and released with the
securing lever (2).
Position A = released
Position B = secured
Releasing body frame
1. Remove the securing plug (1).
2. Turn the securing lever in direction (A).
3. The body frame can now be raised manually,
e.g. for service work.
CAUTION
Danger of accident
Working under the raised body frame
is permitted only with additional sup-
port put into place.
Securing body frame
1. Turn the securing lever in direction (B).
2. Again secure lever (2) with plug (1)
3. The body frame is secured.
CAUTION
Danger of accident
When working with attachments, al-
ways ensure that they are secured to
the body frame.
