Holder C270 - Tipping system*, rear lift*

Attachments C250 ... C370
180 Translation of Original Operating Manual 156319-04
Tipping system*, rear lift*
C270_076
1
B
2
A
C270_081
3 4
4a3a
15
13
14
5
6
5a
6a
C270_080
3
3a
13
14
6a
4a
5
5a
11
15
4

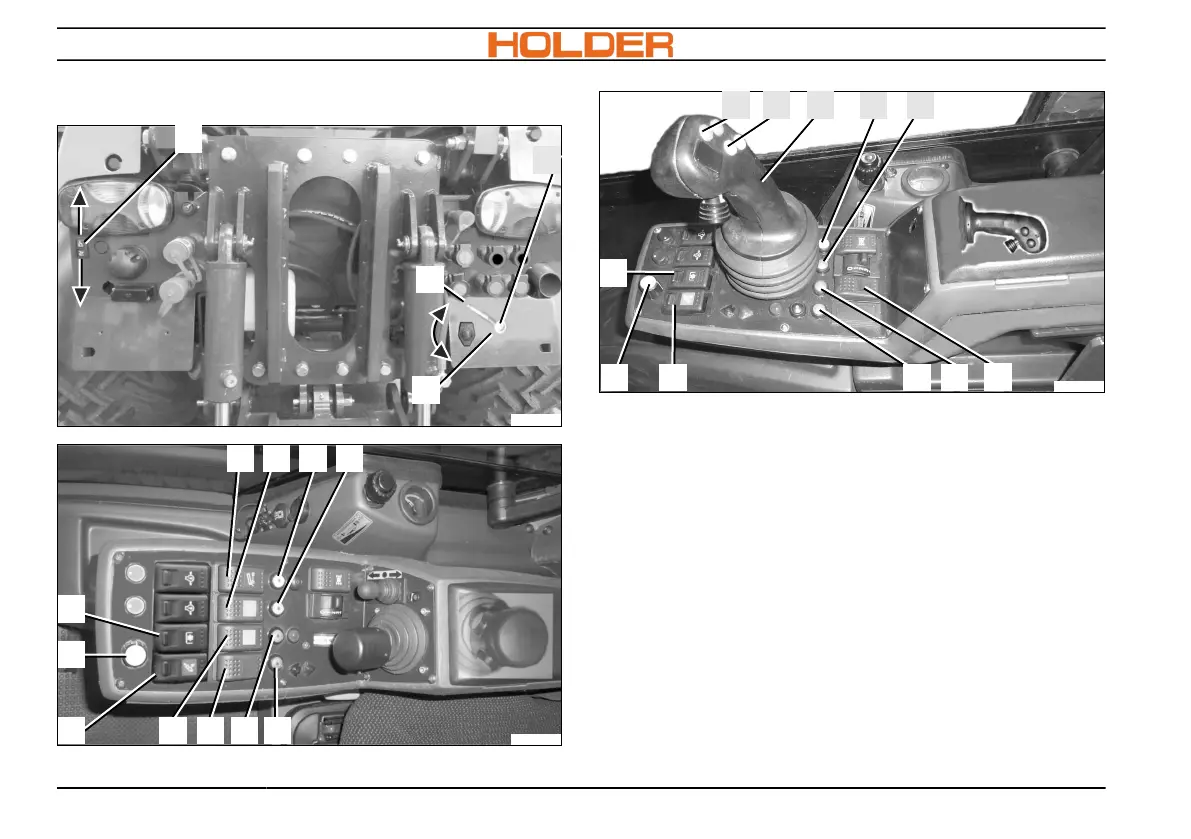

The tipping system* or the rear lift* is operated
with key 3 or 1 (external operation*).
1. Set the changeover valve on the right side
in the rear end of the vehicle to the desired
function.
Function of the changeover lever (2)
Position A = Hydraulic tipping system
Position B = Hydraulic rear lift
