Holder C270 - Check hydraulic oil level

Start-up C250 ... C370
Translation of Original Operating Manual 156319-04 81
Check hydraulic oil level
C270_031a
1
2
max.

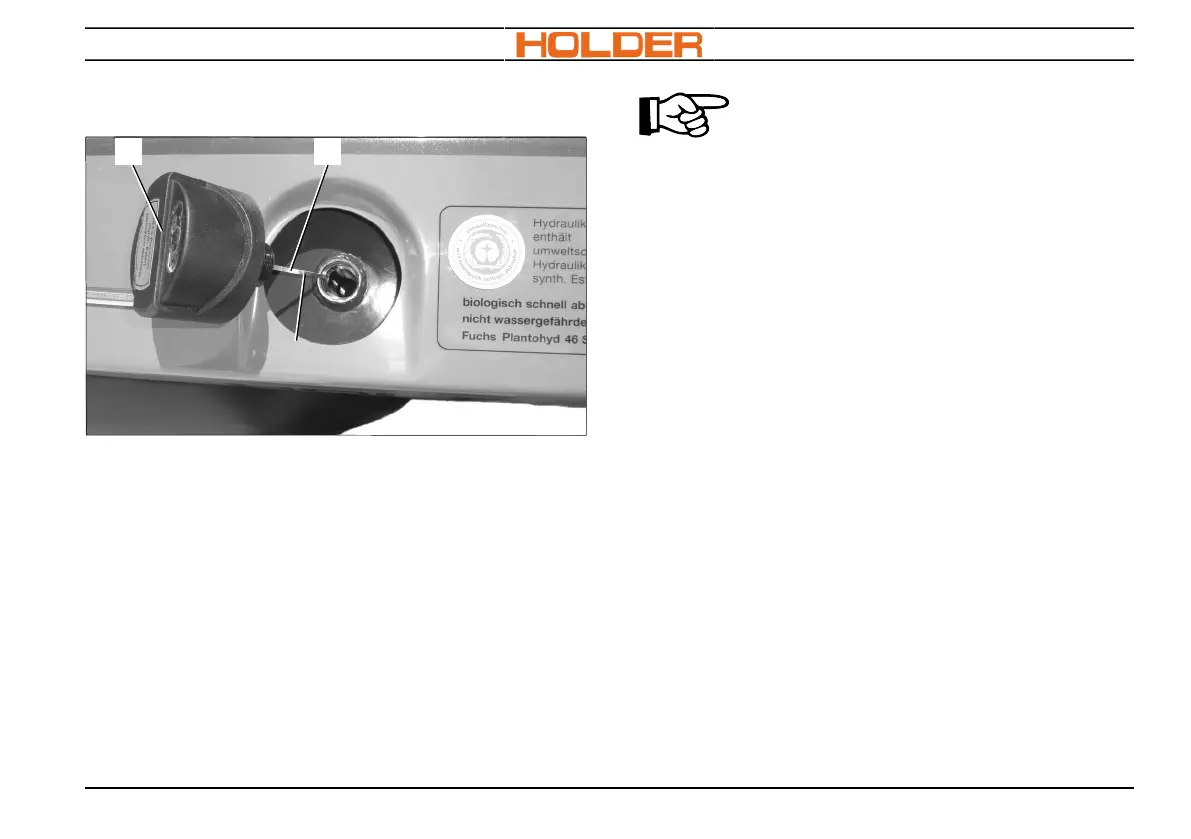

On the right-hand tank
1. Retract all hydraulic cylinders.
2. Open the filler cap (1).
3. Wipe off dipstick (2) and again close filler cap
(1) completely.
4. Open the filler cap and check the oil level on
the dipstick (2).
5. The oil level must lie between the marking
and the end of the dipstick.
ADVICE
The marks are located at the lower end
of the dipstick.
6. Replenish with oil having an appropriate spec-
ification.
(see Maintenance Data "Fluids and lubricants",
page 253).
