Holder C270 - Implement relief coding

Attachments C250 ... C370
178 Translation of Original Operating Manual 156319-04
Implement relief coding
mode
HYDAC
DSP
mode
HYDAC
HYS1
mode
HYDAC
10
+
-
2. OK
1. 1.
mode
HYDAC
5
mode
HYDAC
5
mode
HYDAC
HYS2
3 S
+
-
Coding ok
1. 1.
+
-
2. OK
1. 1.
C270_147

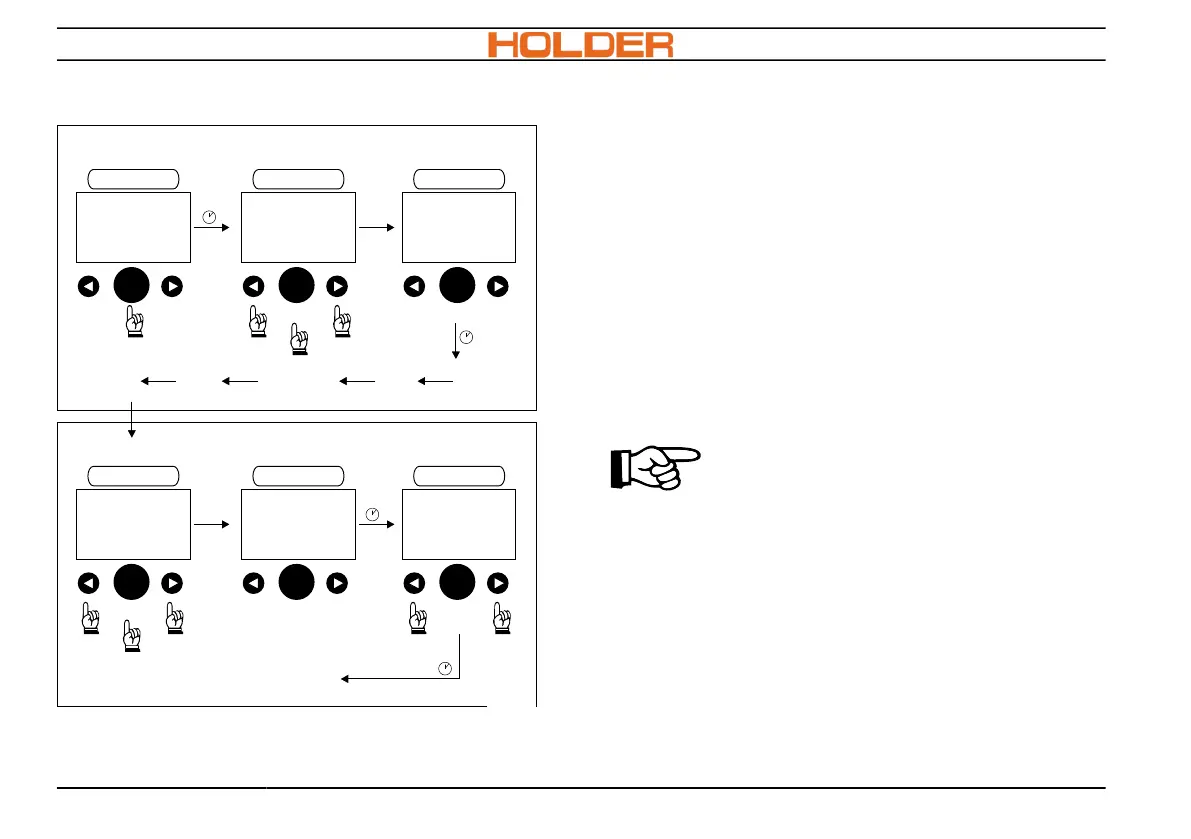

Procedure
1. Press (mode) button; HYS1 appears in the
display. The currently input value appears.
2. The HYS1 value is increased or reduced with
the left or right button (triangle).
3. HYS2 appears if (mode) button is pressed
again.
4. The HYS2 value is increased or reduced with
the left or right button (triangle).
5. DSP appears if (mode) button is pressed
again.
6. The DSP value is increased or reduced with
the left or right button (triangle).
ADVICE
After three seconds without a button
being pressed, the display switches
back and the settings are stored.
