Setting values for implement relief
6
C270_146

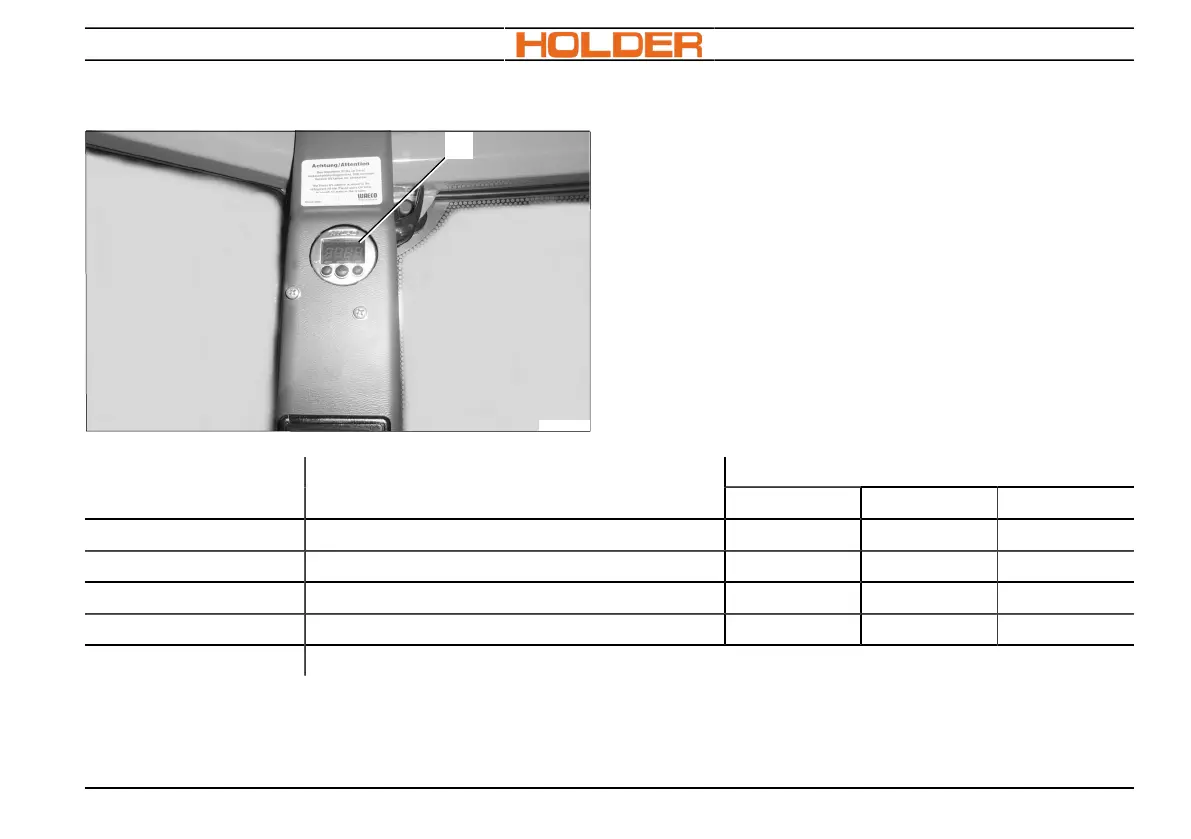

Display (6) displays the degree of relief (SP1) for
implement relief, which can vary according to the
setting of operating element (1) from 4 to 120.
Alternatively, the display can switch to the actual
pressure in the hydraulic cylinders.
For an optimal control of implement relief, it must
be appropriately coded with values via display (6) .
Approximately half the weight of the attached im-
plement is transferred to the carrier vehicles with
the suggested values in the table.
Coding valuesWeight of attach-
ment in kg
Value shown in display. Adjusted to
approx. 50% implement relief
DSP HYS 1 HYS2
500 25 10 5 5
400 25 10 5 5
300 17 6 3 3
200 6 4 1,5 1,5
> 200 Implement relief not suitable
