Attachments C250 ... C370
156 Translation of Original Operating Manual 156319-04
Detaching attachments
DANGER
Danger of accident
In case of improper decoupling, the at-
tachment can tip, roll off or fall to the
ground.
•
Secure the attachment against tip-
ping and roll-off before detach-
ment
Procedure
1. Drive attachment to parking place and lower
with the rear or front lift.
2. Switch off any PTO shaft that may have been
switched on.
3. Shut off engine, do not switch off ignition.
4. Actuate all switches of the hydraulic connec-
tions in use and of the lift several times. This
reduces the pressure in the hydraulic system
and the hydraulics.

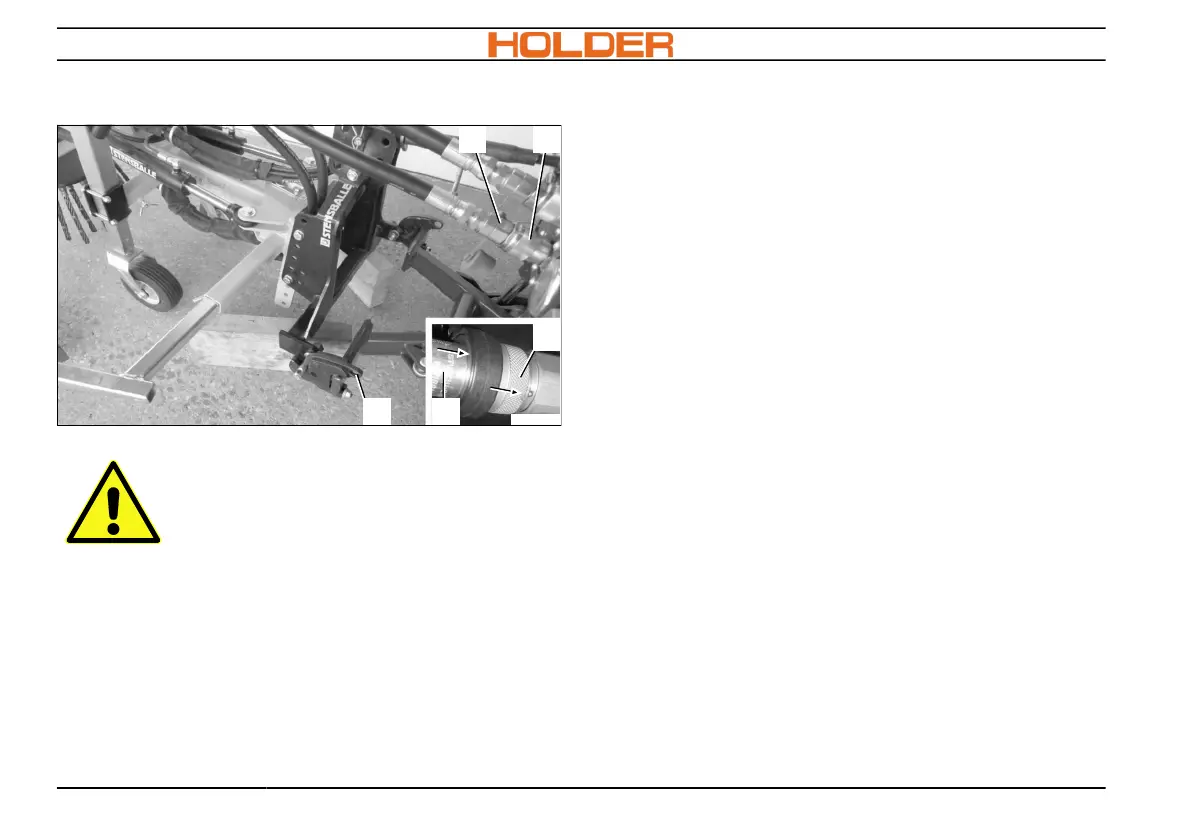

5. Push back the outer rings of the hydraulic
couplings (4) and pull off the hoses on plug
(5). Protect removed plug coupling from cont-
amination.
6. Fold the protective caps of the hydraulic cou-
plings closed.
7. By turning connector (2) counter-clockwise,
detach the connection (1) to the servopump,
volume divider II.
8. Remove the cardan shaft from the tractor's
PTO shaft.
9. Remove the top link from the top link support
on the tractor.
10.Pull up the quick-detach couplings (3): the
pins for the attachment will come free.
11.Lower the lift and drive carefully away.
