Description

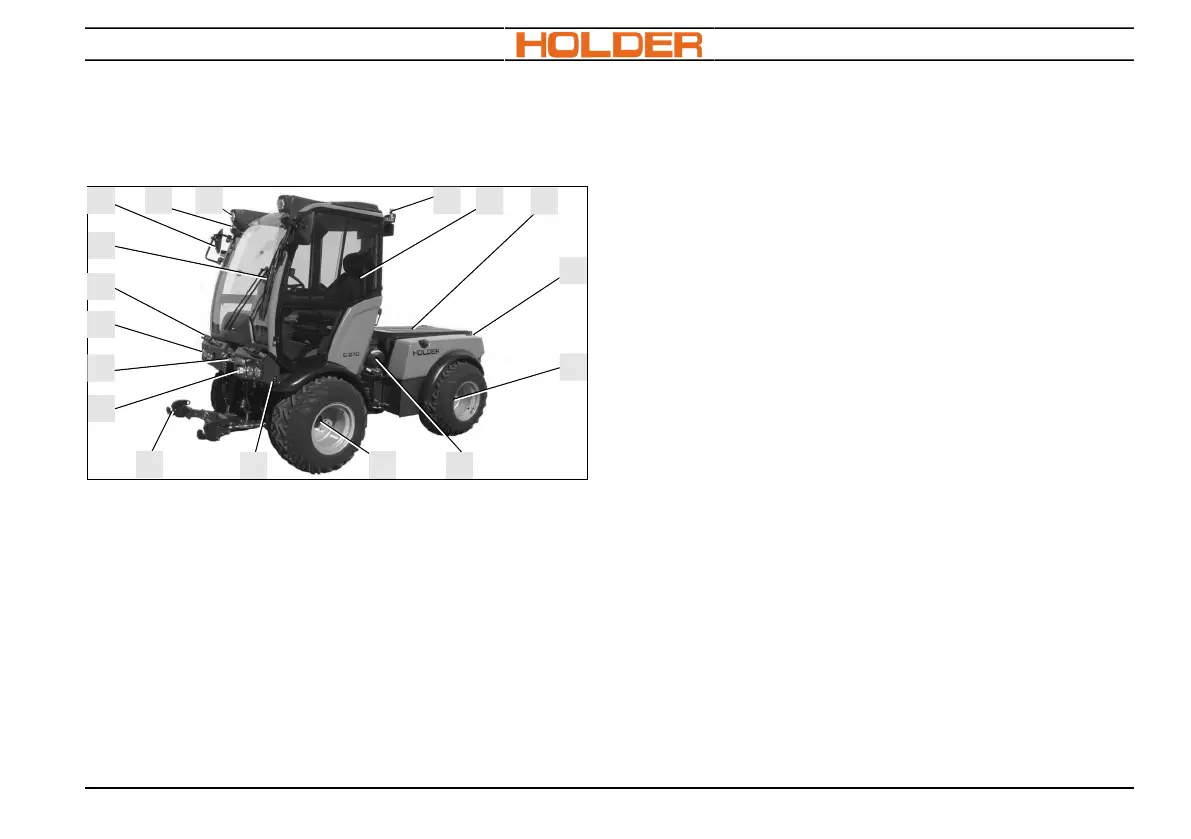

Vehicle overview, from front left

C270_001

3 4

5 6

1 Rear-view mirror

2 Indicator/position light

3 Upper headlight

4 Support for beacon

5 Driver's cab

6 Body frame and tipping system

7 Rear end

8 Rear axle, suspended

9 Engine air filter

10 Front axle, suspended

11 Front lift operating switch

12 Front lift

13 Hydraulic coupler for power hydraulics

14 Top link support

15 Headlight

16 Hydraulic plug-in couplings for attachments

17 Windscreen wiper, windscreen washer
