Holder C270 - Passive inclination adjustment

Attachments C250 ... C370
Translation of Original Operating Manual 156319-04 167
Passive inclination adjustment

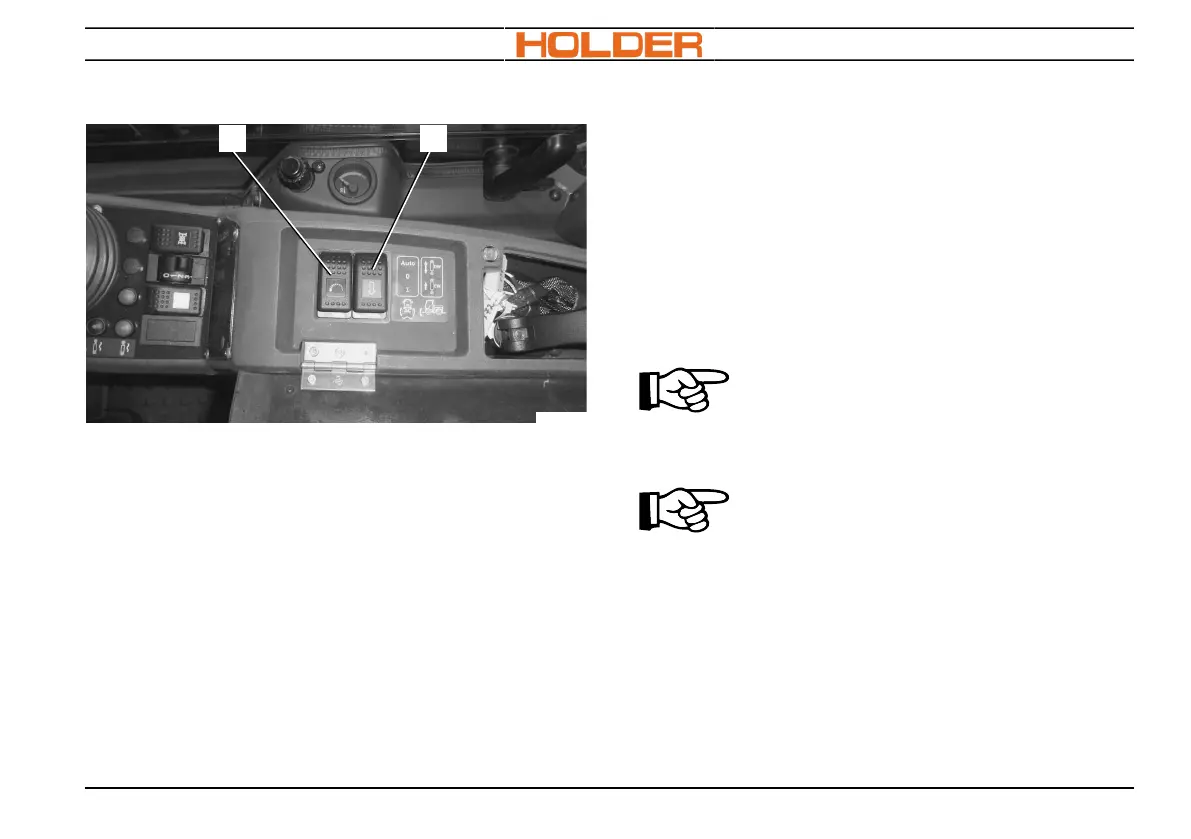

1 2
C270_154
1. Preselection switch (1) ON = floating position
for lateral inclination adjustment has been
preselected. The attachment can move out of
the way due to external influences on the left
or right side.
2. Preselection switch (1) OFF = lateral inclina-
tion adjustment is disabled.
3. Preselection switch (1) AUTO = unites the
functions of floating position up, down and
passive inclination adjustment left, right.
4. Activate the floating position by pressing key
(11a).
5. Deactivate the floating position by active lift-
ing (11).
Double-acting function
1. Switch (2) OFF = lift is single-acting. The at-
tachment can passively move out of the way
upwards.
2. Switch (2) ON = lift is double-acting. With
floating position switched off, the attachment
can also be pressed downward.
ADVICE
With switch (2) ON (double-acting)
floating position is possible without
limitation.
ADVICE
If the attachment is not lifted all
the way, shocks while driving are ab-
sorbed by a hydraulic accumulator.
