Attachments C250 ... C370
Translation of Original Operating Manual 156319-04 175

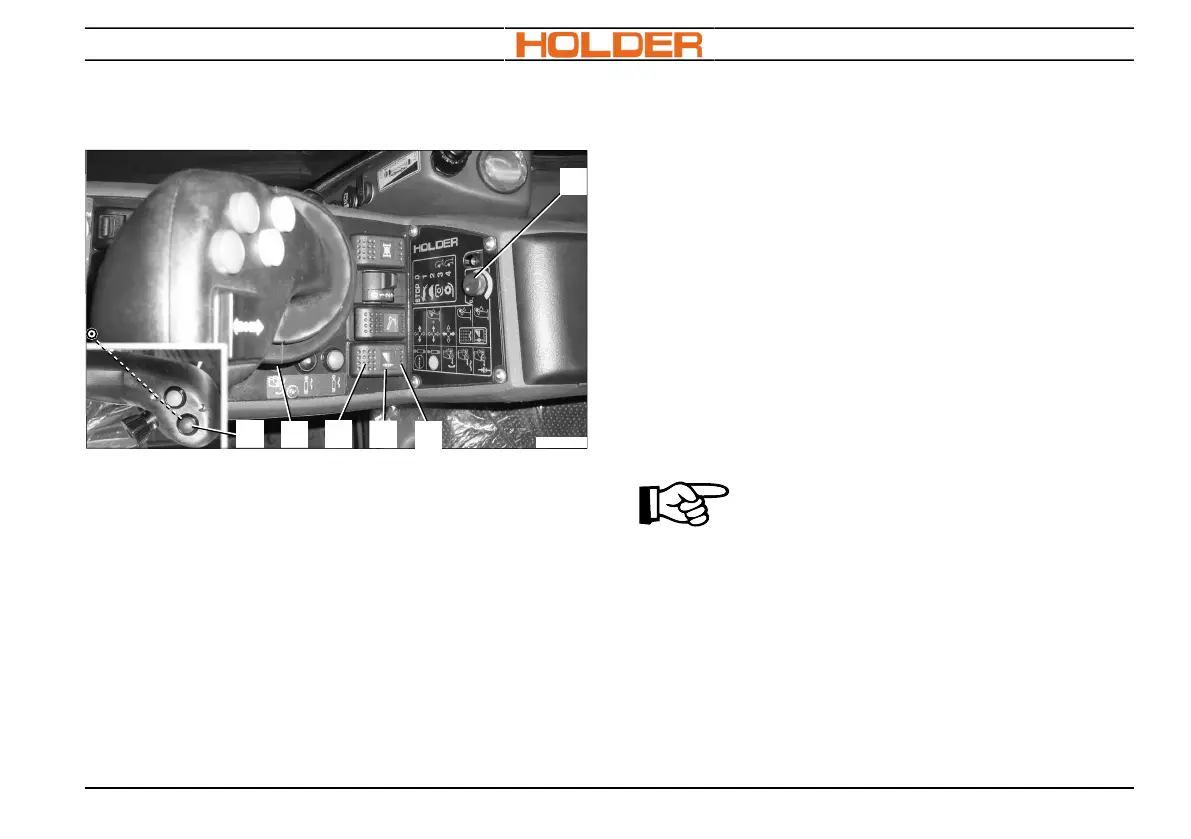

Operating the electrohydraulic implement
relief
4a
5
1
C270_144
3
2
4
1 Degree of implement relief, continuously ad-
justable.
2 Preselection switch for floating position (4) or
implement relief (2).
4aIndicator light for floating position ON.
5 ON/OFF switch for implement relief or floating
position.
Switching floating position or implement re-
lief on and off
1. Select the desired function with switch (3).
Switch at position 2 Implement relief
Switch at position 4 Floating position
2. Lower the implement with the "up/down" joy-
stick function.
3. Switch on the preselected function (2 or 4)
with button (5) on the joystick.
In implement relief, the indicator lamp in
switch (3) and indicator lamp (4a) light up.
In floating position, only indicator lamp (4a)
lights up.
ADVICE
If the setting for the degree of relief for
implement relief (1) is at the minimum
and the value in display (6) is below 4
bar, implement relief is not active
4. You can determine the amount of implement
weight that is transferred to the character ve-
hicle continuously via the degree of imple-
ment relief (1). Also note the suggested set-
ting values, readable in display (6).
5. Deactivate the floating position or implement
