Holder C270 - Vehicle overview, right rear

Description C250 ... C370
48 Translation of Original Operating Manual 156319-04

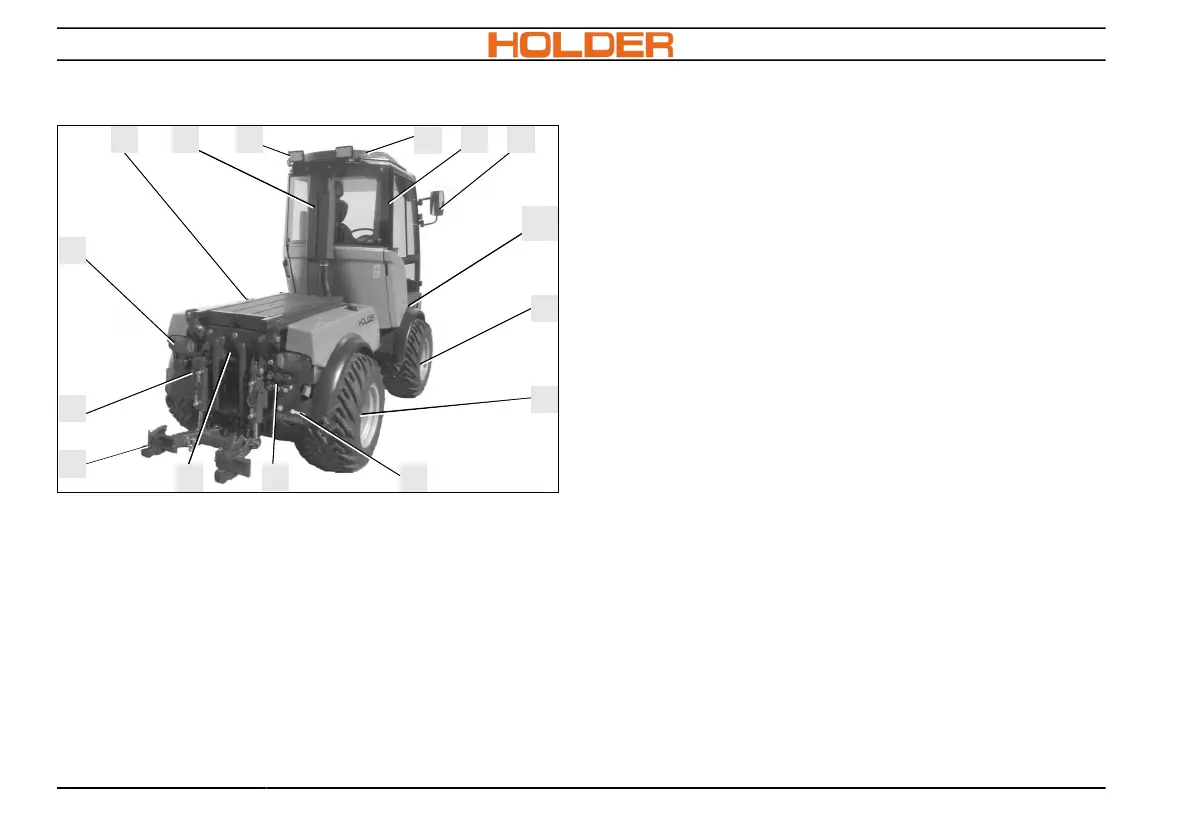

Vehicle overview, right rear
1
C270_002
2
3
4
5
6
7
8
9
11
12
13
10
15
14
1 Body frame
2 Air intake channel for engine and ventilation
3 Working spotlight
4 Pop-out cab roof
5 Driver's cab
6 Rear-view mirror
7 Front end
8 Front axle, suspended
9 Rear axle, suspended
10 Hydraulic plug-in couplings for attachments
11 Support for trailer hitch and top link
12 Rear lift
13 Hydraulic coupler for power hydraulics
14 Tipping system or rear lift changeover lever
15 Tail lights, left, right
