Attaching implements
C270_070
4
3
2
1
5
I
I N

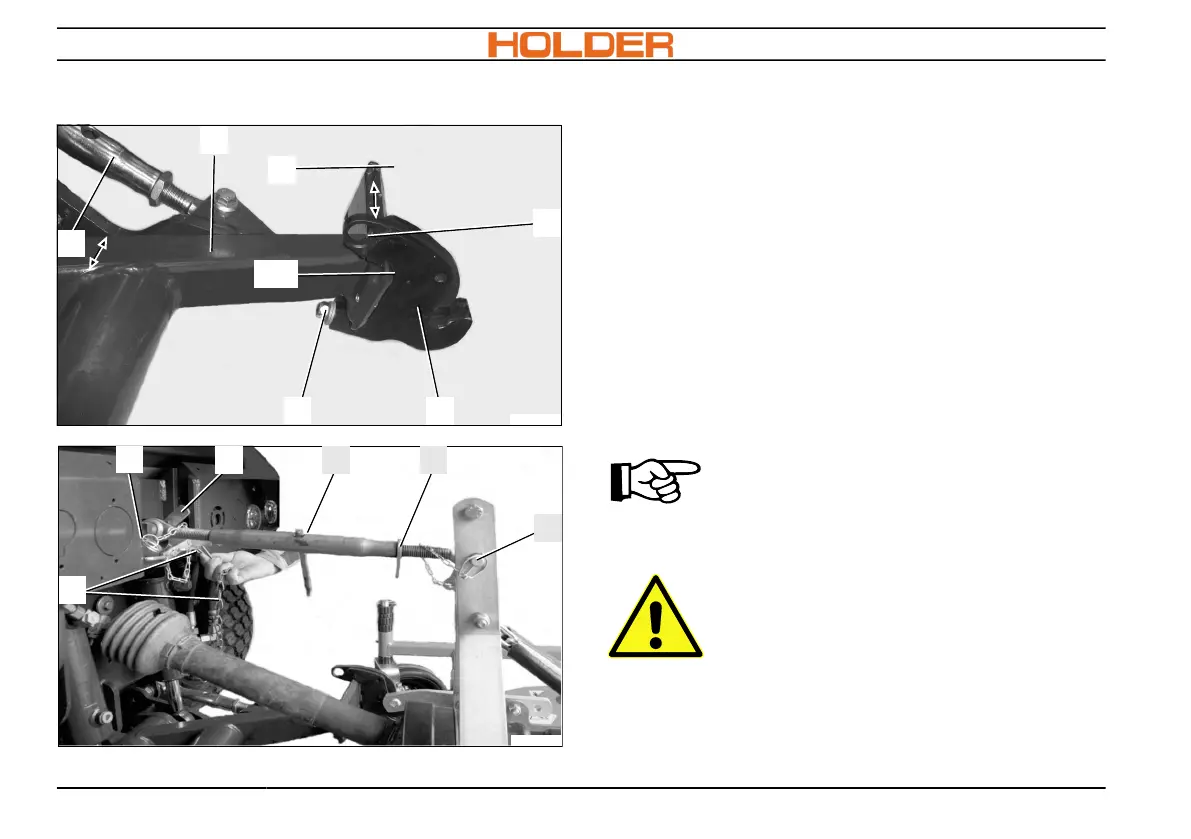

1. Drive with the vehicle up to the attachment to
be picked up.
2. Steer the catch hooks (3) under the support
pins of the attachment.
3. Raise the front or rear lift, but only until the
catch hooks (3) reach the support pins of the
attachment.
4. Adjust the top link to the suitable length by
turning the spindle (7) and secure the top link
with the lever (8).
5. Create the connection between attachment
(9) and tractor with the top link.
6. Carefully raise the front or rear lift until the
quick-detach couplings (2) close and lock.
ADVICE
Do not turn the top links too far apart
from one another. Both threads must
be uniformly screwed into the spindle.
DANGER
Danger of accident
•
Couple the attachment properly
In case of improper coupling to the ve-
hicle, the attachment can tip, roll off
or fall to the ground.
