Attachments C250 ... C370
186 Translation of Original Operating Manual 156319-04
Rear PTO shaft drive*

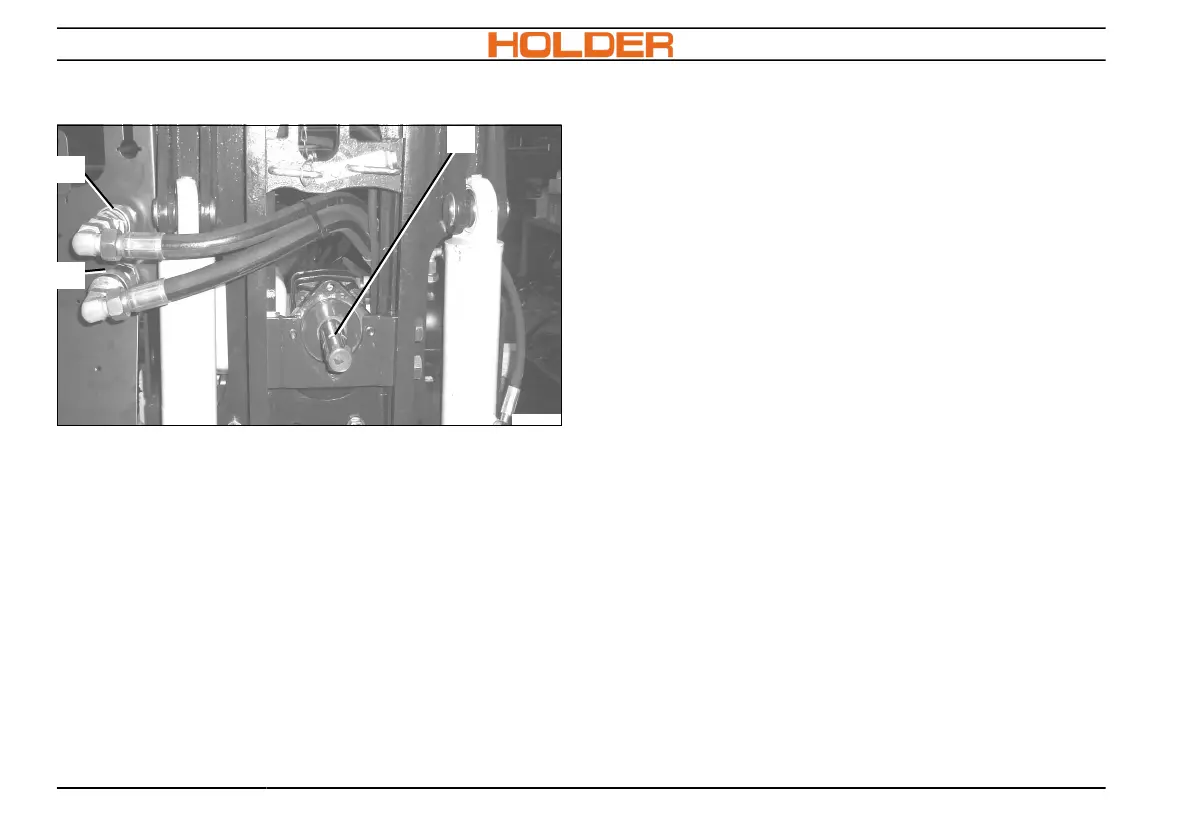

C270_130
C
D
2
The PTO shaft (2) rotates clockwise (view onto the
end of the shaft).
The driving is hydraulic via the volume divider II or
the implement servopump. If the volume adjust-
ment (1a) is set to the maximum, the PTO shaft ro-
tational speed at the nominal engine speed of 2700
rpm
is
480 rpm with volume divider II
640 rpm with implement servopump.
The PTO shaft speed is independent of the engine
speed.
Connecting the PTO shaft hydraulics
1. Connect the hydraulic couplings to the con-
nections C for driving and D for reverse.
Switching on and off
1. Switch on the master switch (13).
2. Turn the volume adjustment (1a) all the way
to the left.
3. Unlock the catch on the safety switch (1) and
press the switch downwards. The rear PTO
shaft drive is switched on.
4. Increase the PTO shaft rotational speed to the
desired value by turning the volume adjust-
ment (1a) to the right.
5. Press the safety switch (1) upwards to switch
it off. Rear PTO shaft drive is switched off.
* Optional equipment
