Attachments C250 ... C370
Translation of Original Operating Manual 156319-04 153

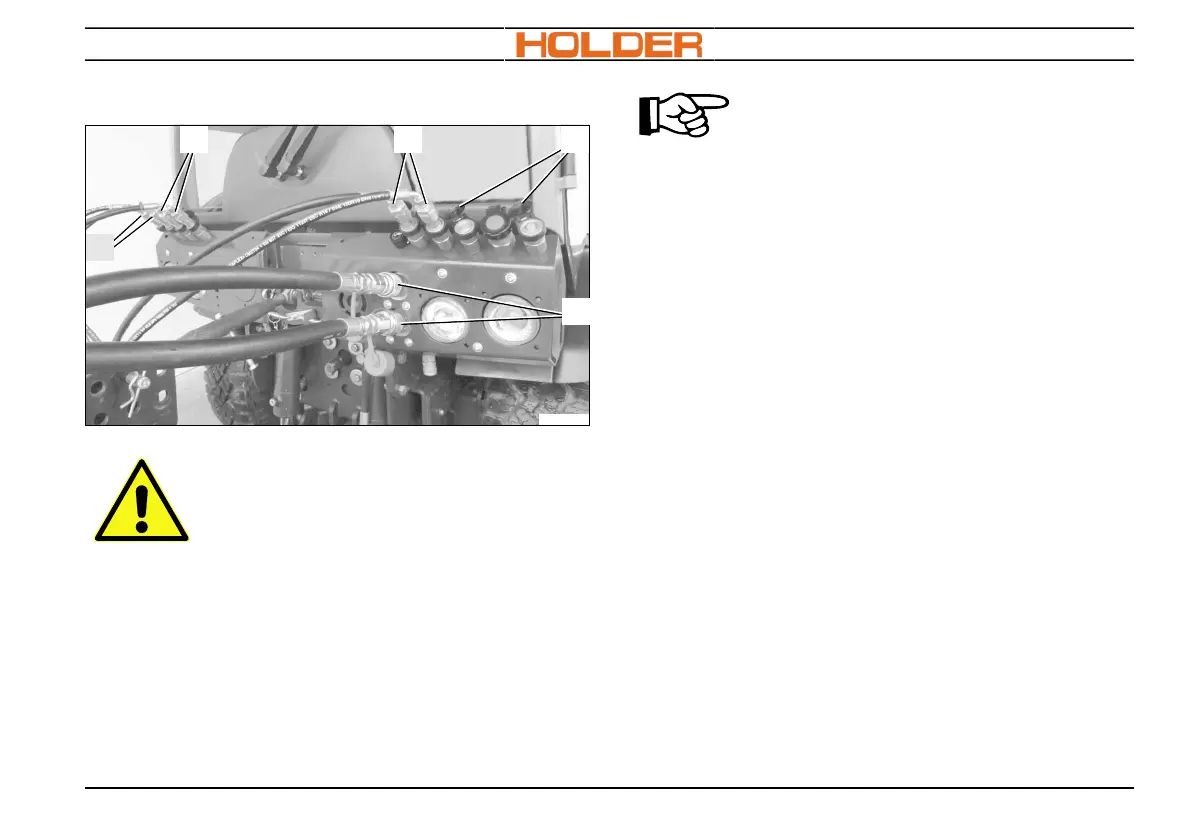

Connecting hydraulic lines
WARNING
Danger of accident
•
Cut off the pressure from hydraulic
couplings before connection
•
Clean couplings on the vehicle and
on the hydraulic lines
ADVICE
Every attachment has various func-
tions and hydraulic lines for control.
Observe the operating manual deliv-
ered with your attachment. Inform
yourself about the functions and the
coloured markings.
1. Before connecting the hydraulic coupling,
actuate the appropriate switches (ignition
switched on) so that the hydraulic lines are
depressurised.
2. Fold up the protective caps of the hydraulic
couplings (2).
3. Connect the colour-marked hydraulic lines
(1) of the attachment to the hydraulic cou-
plings of the vehicle marked with the same
colour by pressing the plug into the coupling
until it snaps into place.
4. The implement pump and volume divider II
couplings (3) are connected to one another
by turning the tractor-side ring clockwise.
