Holder C270 - Blue, green hydraulic connections; Assignment of the functions; Operating hydraulics

Attachments C250 ... C370
172 Translation of Original Operating Manual 156319-04

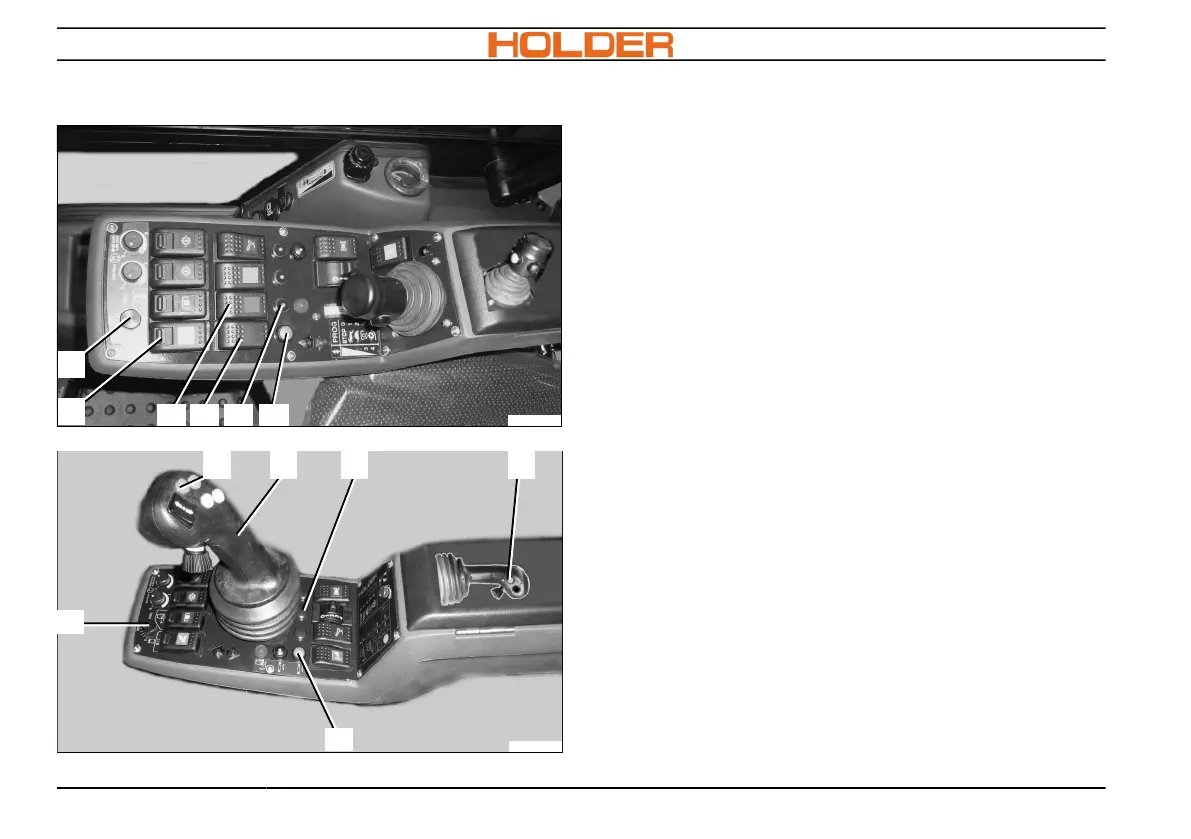

Blue, green hydraulic connections
C270_081a
13
14
6a5a65
C270_080a
6a
14
11
6
5a
5
These hydraulic connections are provided for at-
tachments with a variable hydraulic power require-
ment of at most 25 l/min.
Assignment of the functions
Key (5) = blue couplings
Key (5a) = blue floating position
Key (6) = green couplings
Key (6a) = green floating position
Potentiometer
(14)
= control volume flow
Operating hydraulics
1. Press the selected key, joystick in the desired
direction and hold the key, joystick fixed as
long as necessary. Hydraulics are active.
2. Release key, joystick; movement is stopped.
Hydraulics are no longer activated.
3. Shift key, joystick in the other direction. Hy-
draulic function changes direction.
