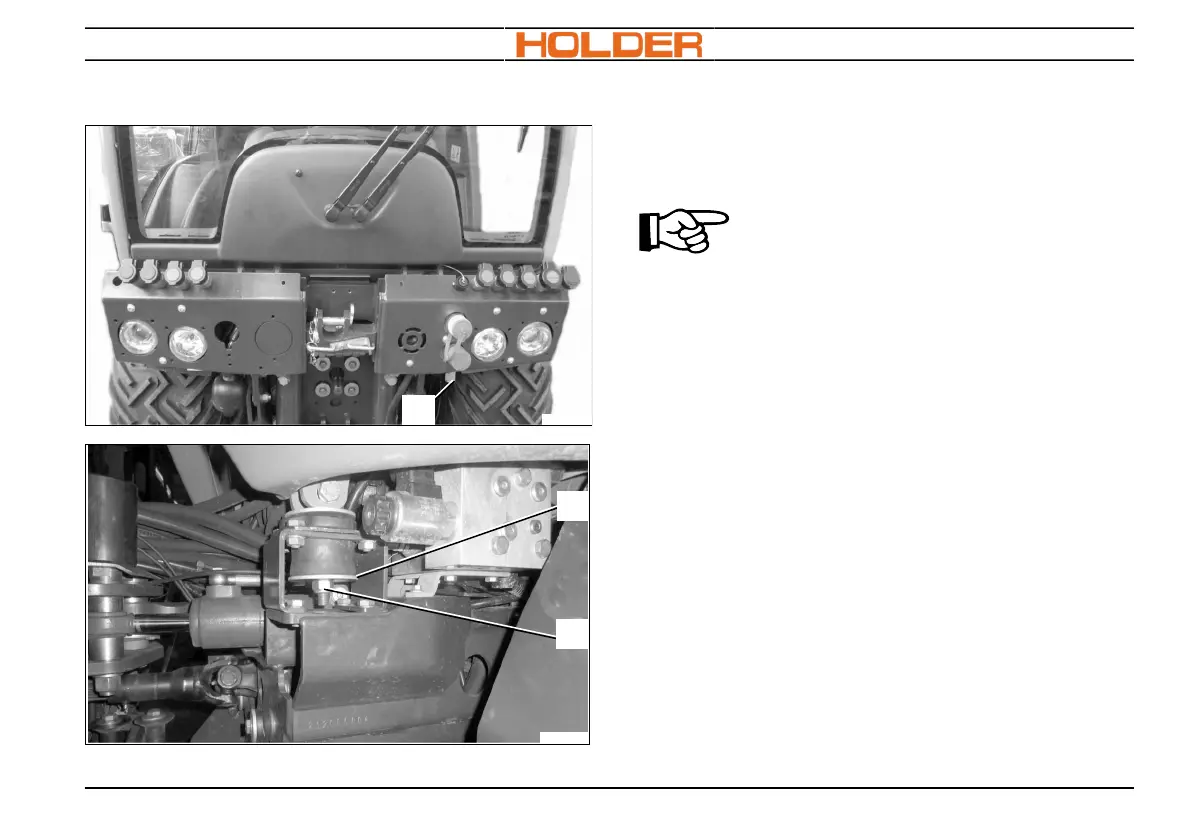

Tilting vehicle cab
The cab can be tilted with a hydraulic device* for
repair and maintenance work. The hydraulic con-
nection* (1) for tilting the cab is located at the front
of the cab.
ADVICE
Carefully raise the cab. Take care that
no connections between the cab and
the underbody are damaged.
1. Detach the hose connection between air in-
take channel and air filter.
2. Unscrew nuts (2) and retaining plate (1) on
the rear side of the cab.
3. Use a separate manual hydraulic pump and
connect it to the coupling (1).
4. Operate manual pump; vehicle cab is lifted by
the hydraulic cylinder* (3).
