Holder C270 - Right-hand operating console (with large joystick)

Description C250 ... C370
54 Translation of Original Operating Manual 156319-04

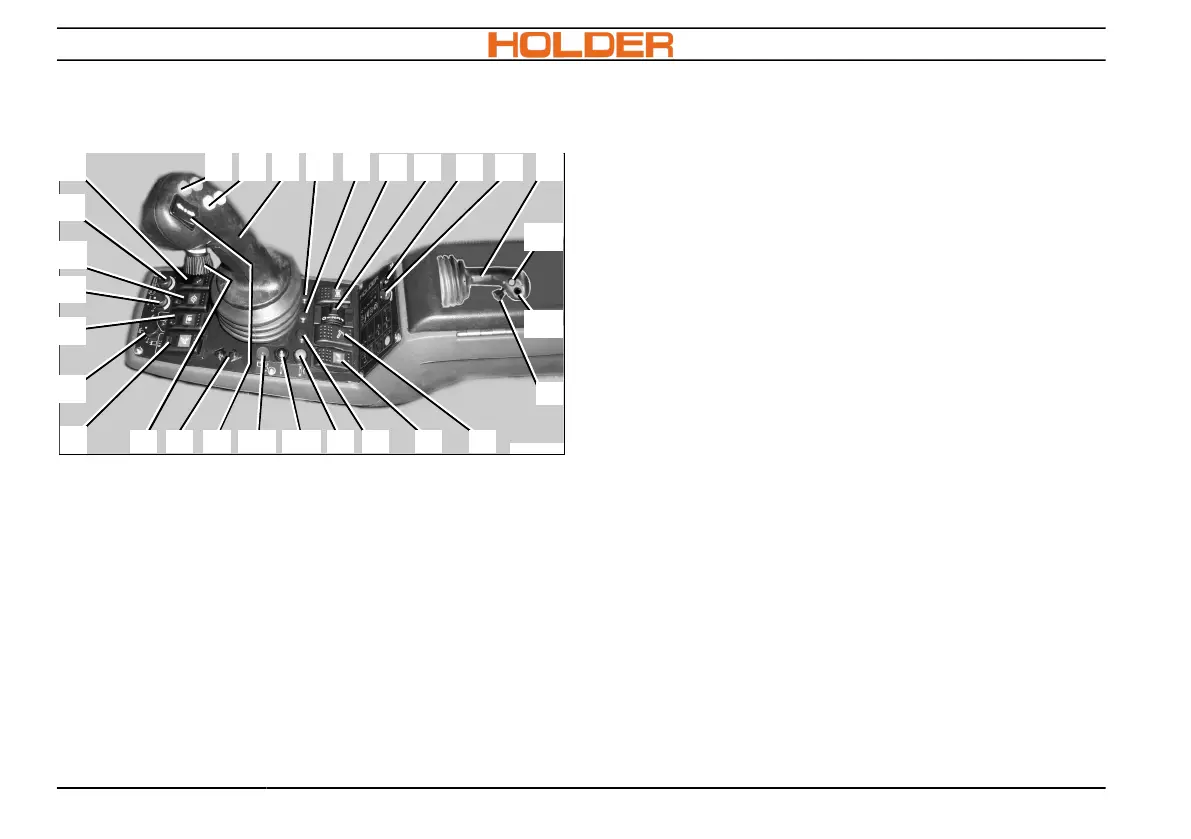

Right-hand operating console (with large
joystick)
C270_074a
2a
1a
1
15
13
14
3a6a 17 3
8
11d
7
11
2
11c
11
4a
5a
10 16
12
12
9a 11a11b9
4
5
1 Volume divider, circuit 2, 40-60 l/min (alter-
native implement servopump)
1a Volume adjustment, circuit 2, 40-60 l/min
(alternative implement servopump)
2 Volume divider, circuit 1 0-25 l/min
2a Volume adjustment, circuit 1
3 Tipping system or rear lift switch
3a Floating position button for switch 3
4 Inclination adjustment switch for the front lift
4a Dummy plug
5 Hydraulic coupling switch, blue
5a Floating position button for hydraulic cou-
pling, blue
6 Hydraulic coupling switch, green
6a Floating position button for hydraulic cou-
pling, green
7 Switch for differential lock
8 Driving programme switch
9 Direction switch
9a Direction indicator
10 Illumination diode for operating console
11 Joystick up, down for front lift. Joystick left,
right for hydraulic coupling black, green
11a Floating position button for hydraulic cou-
pling, black, green
11b Indicator light for front lift floating position
