Holder C270 - Operating volume dividers I* and II*

Attachments C250 ... C370
188 Translation of Original Operating Manual 156319-04
Operating volume dividers I* and II*
The volume dividers I or II are used for driving a
hydraulic motor in a device such as a salt spread-
er, hedge cutter or the like with a variable power
requirement. The working speed of the attachment
can be adjusted independently of the vehicle's en-
gine speed.
Volume divider I = 0-25 l/min is supplied by the
implement pump. Operation with switch (2).
Volume divider II = 40-60 l/min is supplied by the
tandem implement pump. Operation with switch
(1).

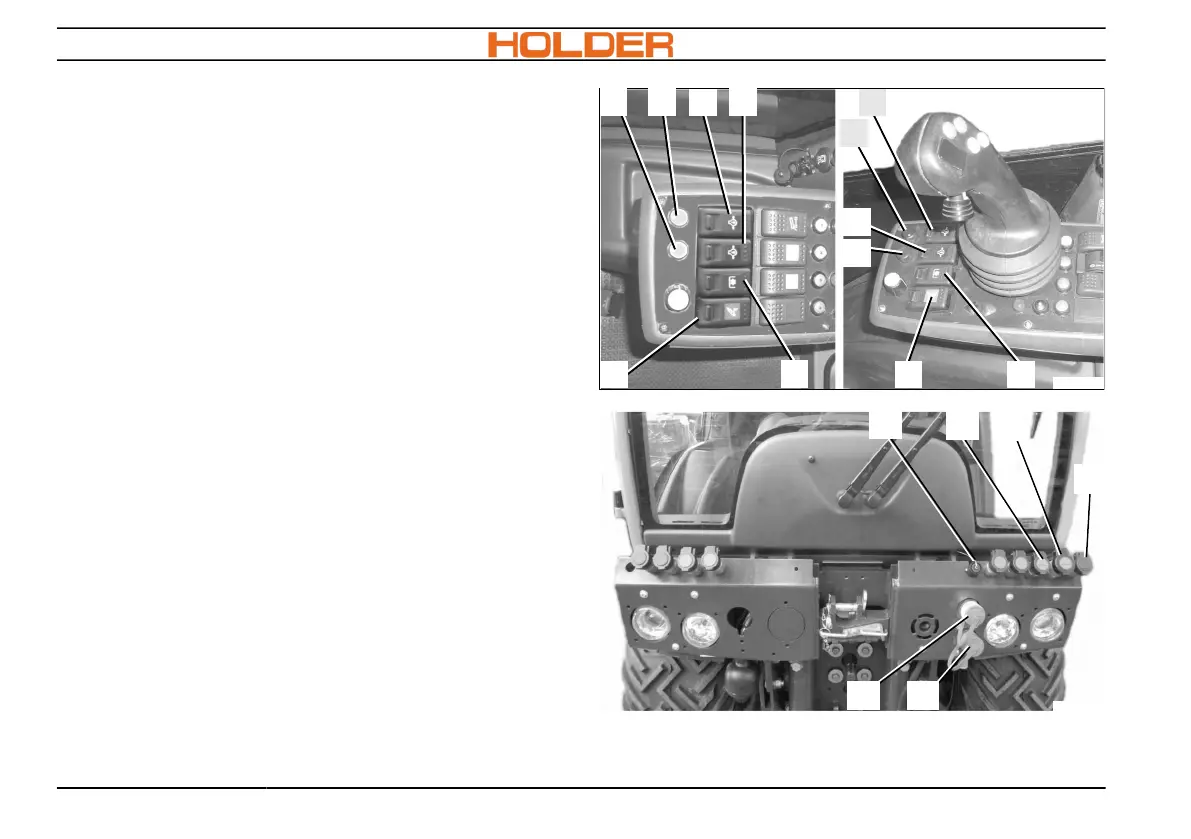

Connections front, back (see page 190).
(A) Volume divider I drive
(B) Volume divider I return
(C) Volume divider II, servopump drive
(D) Volume divider II, servopump return
(E) Leakage oil connection
(F) Implement coding socket
