Holder C270 - Lateral adjustment of the lift

Attachments C250 ... C370
150 Translation of Original Operating Manual 156319-04

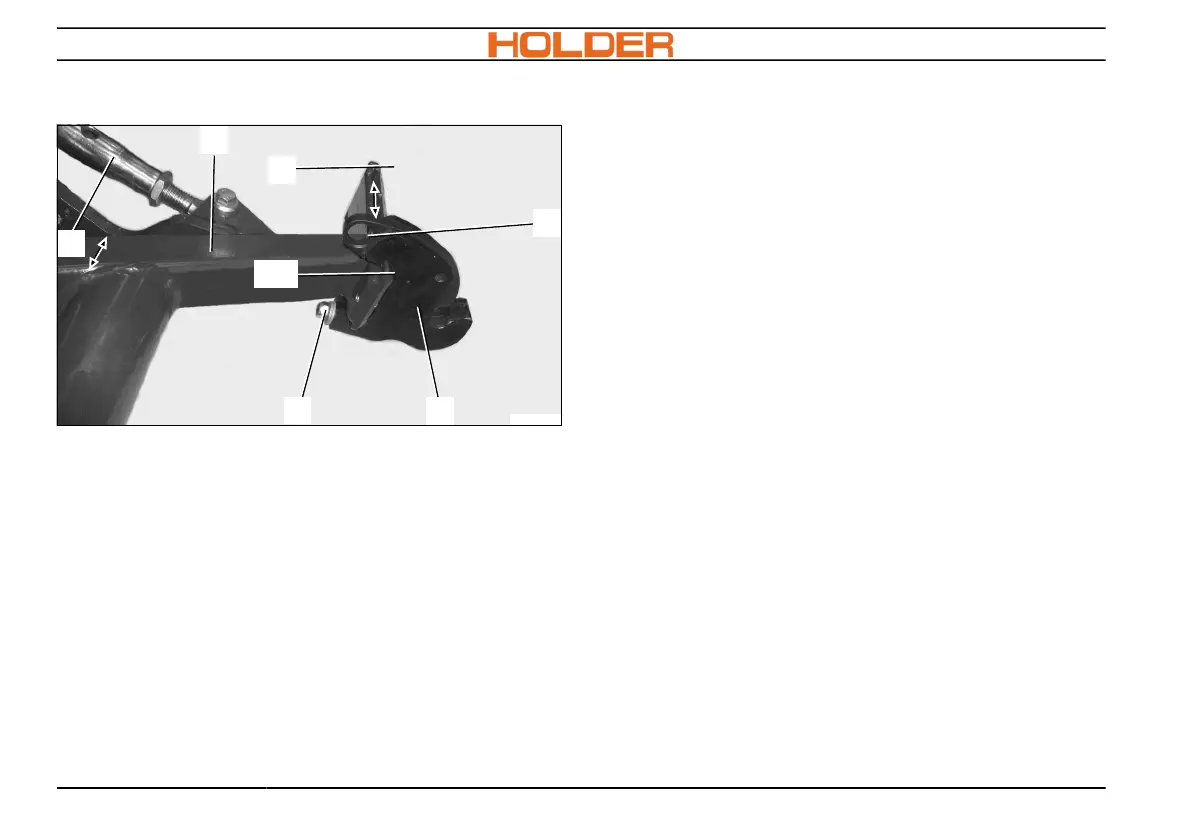

Lateral adjustment of the lift
C270_070
4
3
2
1
5
I
I N
1 Lower link frame
2 Quick-detach coupling
3 Catch hook
4 Clamping screw
5 Lateral adjustment of the lower link frame
1. Detach the lock nut on the lateral adjustment
spindle (5).
2. You can swivel the lift to the left or the right
by turning the spindle (5).
3. Again lock and secure the spindle (5) with the
nut.
