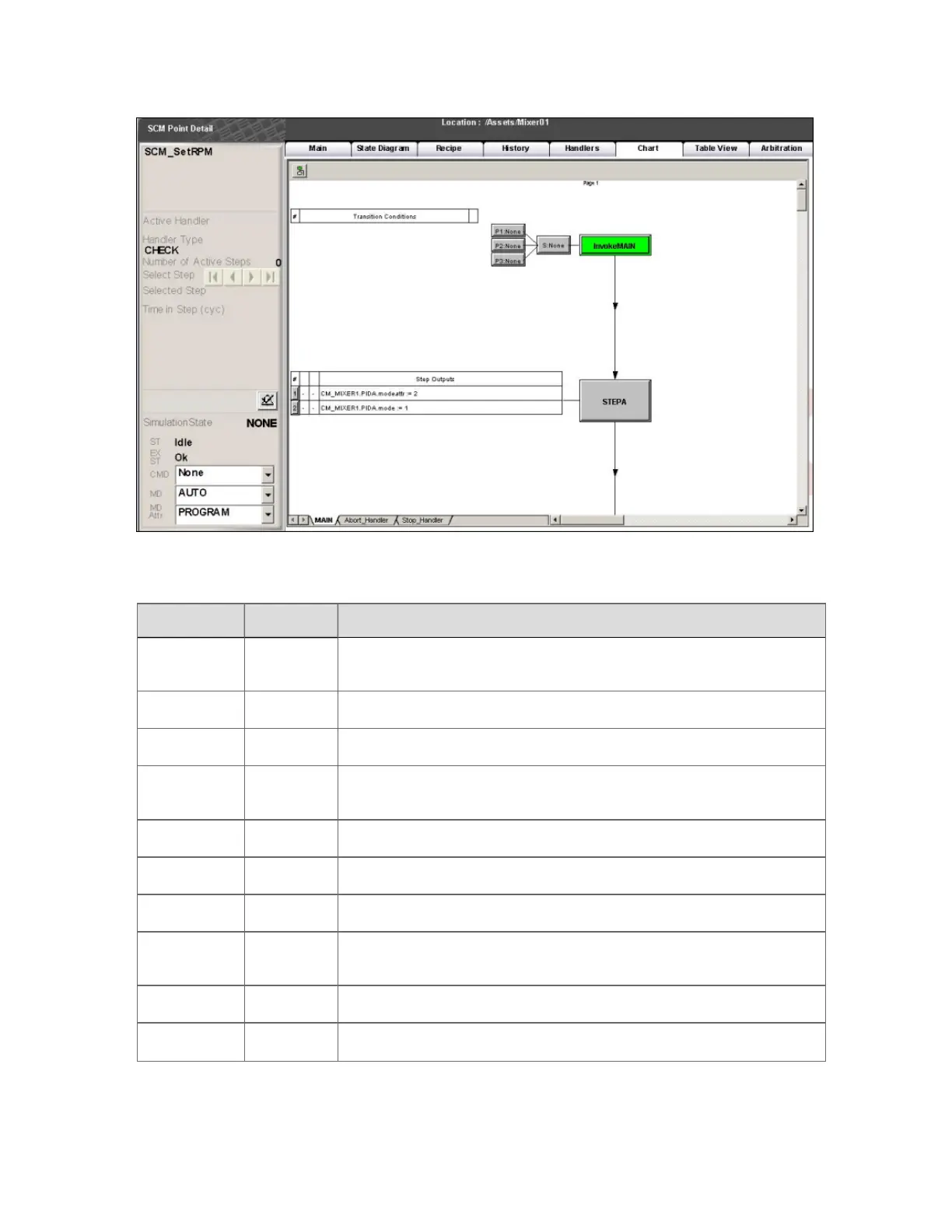

As an SCM runs, the transitions and steps change color. The following table lists the colors
and their meaning.
Item Color State
Transition
block
Gray The transition block is waiting to run.
Green The transition block is running
Blue The Transition is complete
Transition
conditions
Green The condition is true.
Background The condition has not been met.
Red The condition is failed or in error.
Yellow Warning
Step block Gray
The step block is waiting for the conditions in the preceding
transition block to become true for it to run.
Green The step block is running.
Blue The step block has completed.
Displaying detailed process information
Honeywell 2017 218
