Using Group Detail displays
A Group Detail display shows the main parameters for a set of up to eight related points. The
information is presented using faceplates. A faceplate is a specialized type of popup window
that shows critical information about the point to which the object is linked. In most cases, a
faceplate is similar to the left-hand portion of the matching point detail display.
Each group is identified by a number, and generally has a descriptive title.
To call up a group detail display by choosing it from list of groups
1. Choose View>Group Summary to see the list of groups.
2. Select a group.
To call up a group detail display whose number you know
1.
Click (Group).
2. In the Command Zone, type the group number and press ENTER.

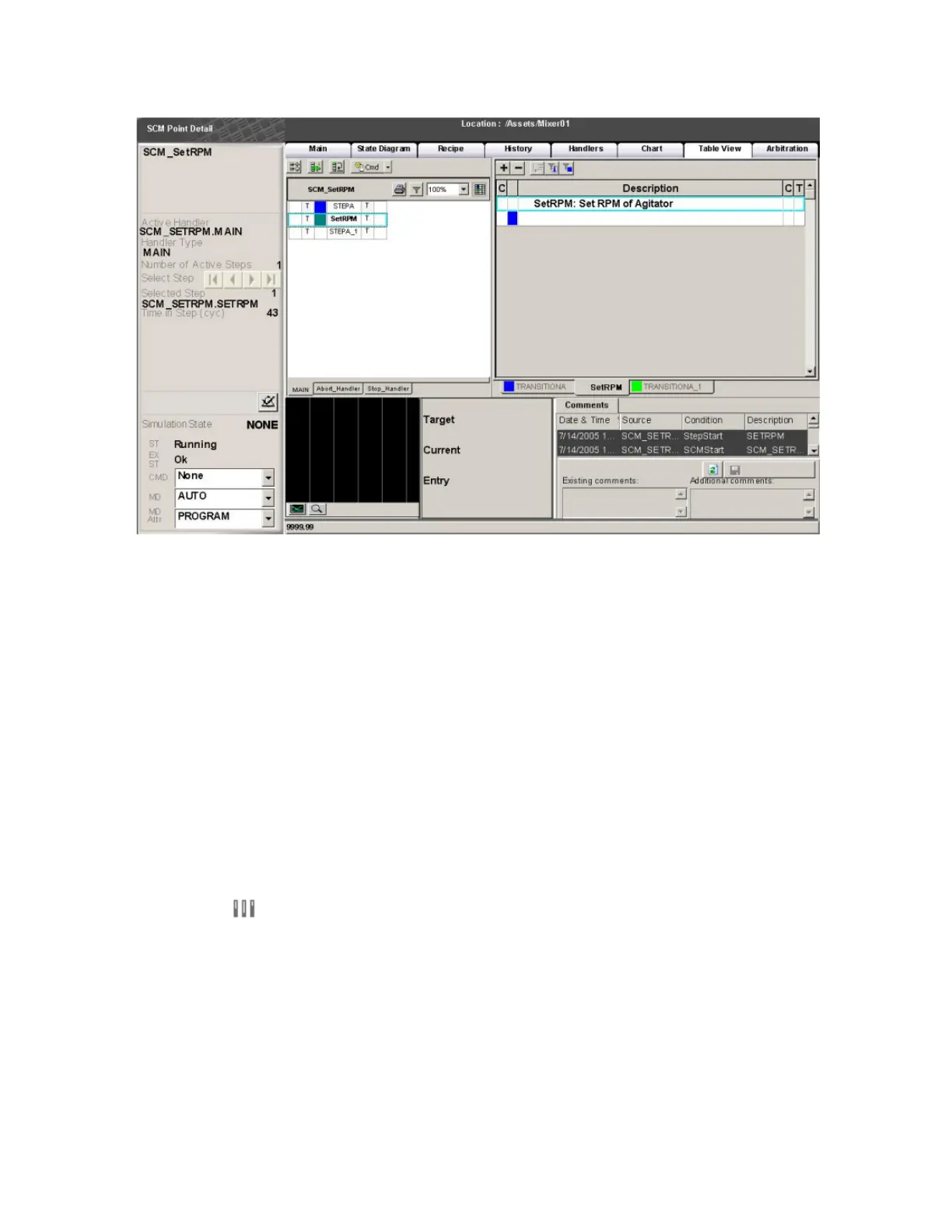

Typical Group Detail display
Displaying detailed process information
Honeywell 2017 220
